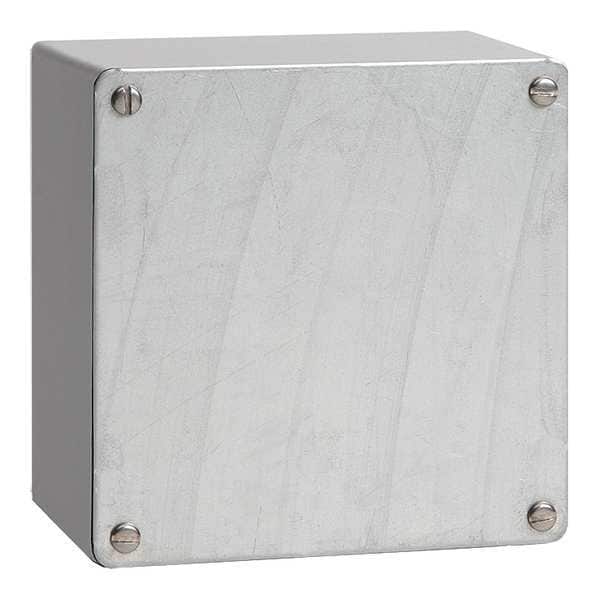

Captive Screws Electrical Enclosures, 8 in H, 4 in D, 8 in W, 12, 3, Steel
| Item | Electrical Enclosures |
|---|---|
| Nominal Width | 8 in |
| Nominal Height | 8 in |
| Nominal Depth | 4 in |
| NEMA Enclosure Rating | 12, 3 |
| Enclosure Material | Steel |
| Closure Method | Screws |
| Cover Closure Type | Screw On |
| Knockouts | No |
| Metallic / Non-Metallic | Metallic |
| Color | Silver |
| Finish | Galvanized |
| Mounting | Wall |
| Cover Style | Solid |
| Metal Gauge | 14/16 ga |
| Solid / Clear Cover | Solid |
| Enclosure NEMA Rating | NEMA 3 |
| Material of Enclosure | Galvanized Steel |
| Series | A90G3 |
| Standards | CSA, File 42184: Type 4 and 12, cUL Listed Per CSA C22.2 No 94, File No E61997, IEC 60529, NEMA/EEMAC Type 3 and 12 (except for mounting provisions), Type 3, 12, UL 508A Listed |
| IP Rating | IP66 |
| Gasket | Oil Resistant |
| Enclosure Cover Features | Screw Latch |
| Enclosure Cover Type | Screw On |
| Features | 3 Weather-resistant |
| Weight | 6 |
| Cover Screw Quantity | 4 |
| Body Material Thickness | 14 ga |
| Includes Knockouts | Knockouts Not Included |
| Environment - MERCH | Dust Tight |
| Gasket Material | Oil Resistant |
| Hazardous Location Specification | Not Applicable |
| Compatible Panel Model Number | Not Applicable |
| Package Quantity | 1 |
