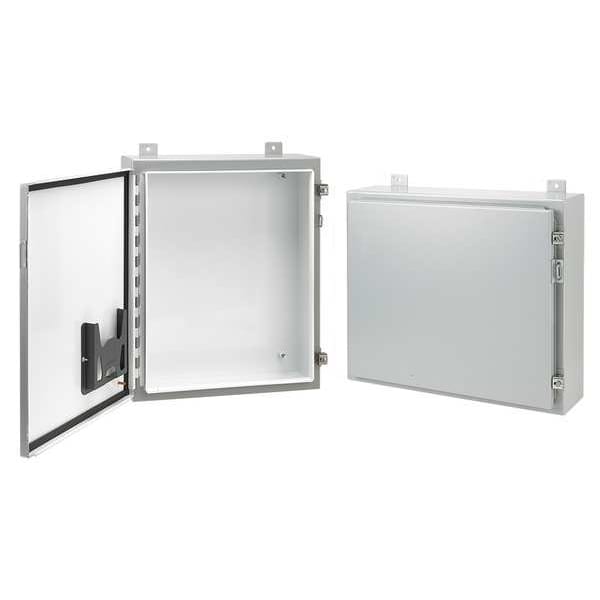

Carbon Steel Electrical Enclosures, 24 in H, 12 in D, 20 in W, NEMA 12, Hinged
| Item | Electrical Enclosures |
|---|---|
| Nominal Width | 20 in |
| Nominal Height | 24 in |
| Nominal Depth | 12 in |
| Enclosure NEMA Rating | NEMA 12 |
| Material of Enclosure | Carbon Steel |
| Closure Method | Clamps |
| Enclosure Cover Type | Hinged |
| Knockouts | No |
| Metallic / Non-Metallic | Metallic |
| Color | Gray |
| Finish | Polyester Powder |
| Mounting | Wall |
| Solid / Clear Cover | Solid |
| IP Rating | IP65 |
| Metal Gauge | 14/16 ga |
| Interior Panel | 32FT40 |
| Features | Mounting Holes |
| Gasket | Neoprene |
| Enclosure Cover Features | Clamps |
| Standards | CSA, File No 42186: Type 12, cUL Listed Per CSA C22.2 No 94, File No E61997, IEC 60529, NEMA/EEMAC Type 12 and 13, UL 508A Listed |
| Series | A12 |
| Enclosure Material | Steel |
| Weight | 53 |
| Data Pocket | Small |
| Clamp Quantity | 2 |
| NEMA Enclosure Rating | 12, 13 |
| Gasket Material | Neoprene |
| Environment - MERCH | Dust Tight |
| Cover Style | Solid |
| Body Material Thickness | 14 ga |
| Includes Knockouts | Knockouts Not Included |
| Cover Closure Type | Hinged |
| Compatible Panel Model Number | A24P20, A24P20G |
| Hazardous Location Specification | Not Applicable |
| Package Quantity | 1 |
