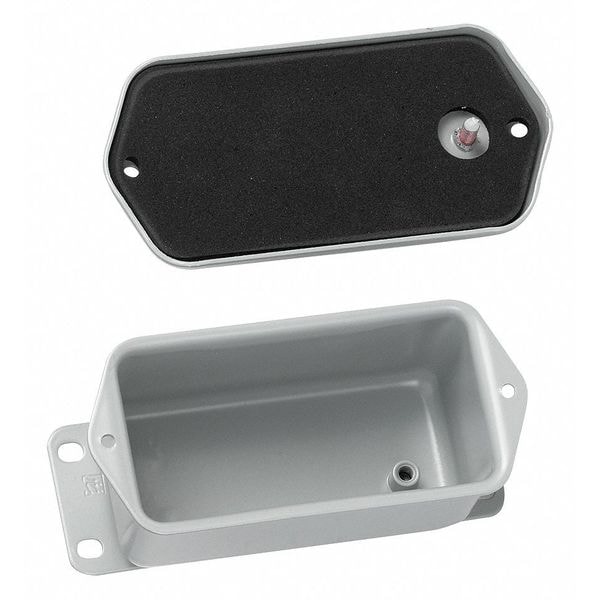

Carbon Steel Electrical Enclosures, 4 in H, 2 in D, 2 in W, NEMA 4, Screw On
| Item | Electrical Enclosures |
|---|---|
| Nominal Width | 2 in |
| Nominal Height | 4 in |
| Nominal Depth | 2 in |
| Enclosure NEMA Rating | NEMA 4 |
| Material of Enclosure | Carbon Steel |
| Closure Method | Screws |
| Enclosure Cover Type | Screw On |
| Knockouts | No |
| Metallic / Non-Metallic | Metallic |
| Color | Gray |
| Finish | Polyester Powder |
| Mounting | Wall |
| Solid / Clear Cover | Solid |
| Metal Gauge | 16 ga |
| Enclosure Cover Features | Flanged, Formed |
| Features | External-Wall Mounting Bracket |
| Standards | CSA, File No 42186: Type 4, 12, 13, cUL Listed Per CSA C22.2 No 94, File No E61997, IEC 60529, Type 4, 6, 12, 13, UL 508A Listed |
| Gasket | Neoprene |
| IP Rating | IP67 |
| Series | A51DR |
| Enclosure Material | Steel |
| Weight | 0.88 |
| Capacity | 13.9 cubic in |
| Interior Volume | 13.9 in³ |
| Environment - MERCH | Washdown |
| Gasket Material | Neoprene |
| NEMA Enclosure Rating | 12, 4, 13, 6 |
| Cover Closure Type | Screw On |
| Cover Style | Solid |
| Compatible Panel Model Number | Not Applicable |
| Body Material Thickness | 16 ga |
| Hazardous Location Specification | Not Applicable |
| Includes Knockouts | Knockouts Not Included |
| Package Quantity | 1 |
