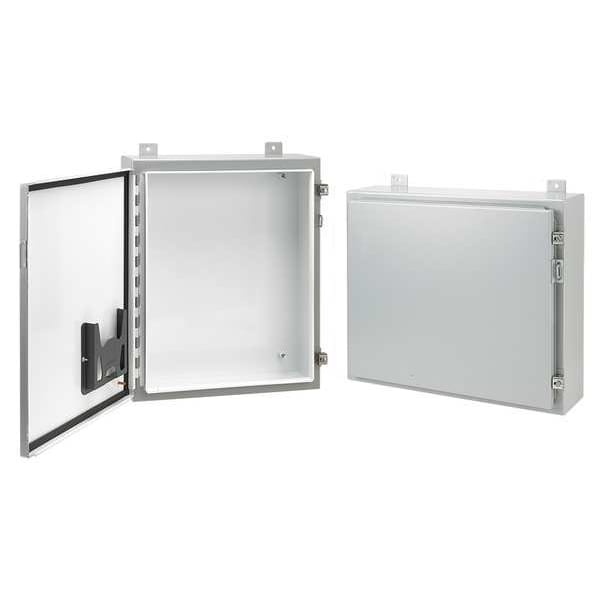

Carbon Steel Electrical Enclosures, 48 in H, 10 in D, 36 in W, NEMA 12, Hinged
| CAD Available | Yes |
|---|---|
| Item | Electrical Enclosures |
| Nominal Width | 36 in |
| Nominal Height | 48 in |
| Nominal Depth | 10 in |
| Enclosure NEMA Rating | NEMA 12 |
| Material of Enclosure | Carbon Steel |
| Closure Method | Clamps |
| Enclosure Cover Type | Hinged |
| Knockouts | No |
| Metallic / Non-Metallic | Metallic |
| Color | Gray |
| Finish | Polyester Powder |
| Mounting | Wall |
| Solid / Clear Cover | Solid |
| Interior Panel | 32FT70 |
| Standards | CSA, File No 42186: Type 12, cUL Listed Per CSA C22.2 No 94, File No E61997, IEC 60529, NEMA/EEMAC Type 12 and 13, UL 508A Listed |
| IP Rating | IP65 |
| Series | A12 |
| Gasket | Neoprene |
| Features | Mounting Holes |
| Metal Gauge | 14/16 ga |
| Enclosure Cover Features | Clamps |
| Enclosure Material | Steel |
| Clamp Quantity | 3 |
| Data Pocket | Large |
| Body Material Thickness | 16 ga |
| NEMA Enclosure Rating | 12, 13 |
| Hazardous Location Specification | Not Applicable |
| Cover Style | Solid |
| Environment - MERCH | Dust Tight |
| Gasket Material | Seamless Foam-In-Place |
| Compatible Panel Model Number | A48P36, A48P36G |
| Cover Closure Type | Hinged |
| Includes Knockouts | Knockouts Not Included |
| Package Quantity | 1 |
