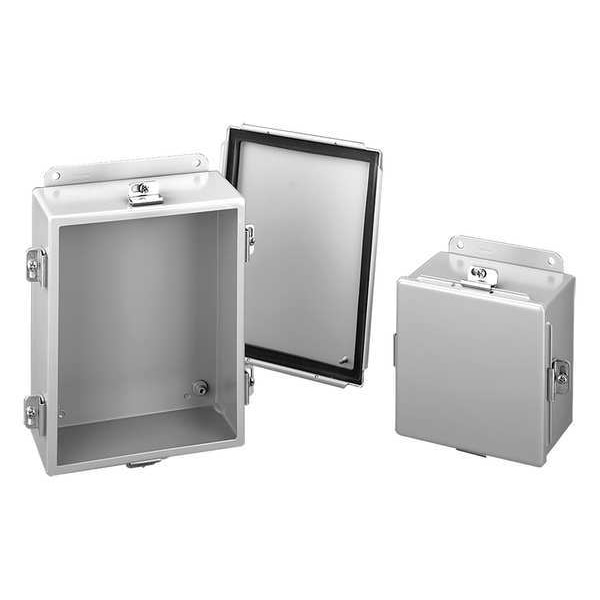

Carbon Steel Electrical Enclosures, 6 in H, 4 in D, 6 in W, NEMA 4, Non Hinged Clamp
| Item | Electrical Enclosures |
|---|---|
| Nominal Width | 6 in |
| Nominal Height | 6 in |
| Nominal Depth | 4 in |
| Enclosure NEMA Rating | NEMA 4 |
| Material of Enclosure | Carbon Steel |
| Closure Method | Clamps |
| Enclosure Cover Type | Non Hinged Clamp |
| Knockouts | No |
| Metallic / Non-Metallic | Metallic |
| Color | Gray |
| Finish | Polyester Powder |
| Mounting | Wall |
| Solid / Clear Cover | Solid |
| Series | A51NF |
| Gasket | Neoprene |
| Enclosure Cover Features | Screw-Down Clamps |
| Features | External-Wall Mounting Bracket |
| Interior Panel | 32FR66 |
| IP Rating | IP66 |
| Metal Gauge | 14/16 ga |
| Standards | CSA, File No 42184: Type 4, 12, cUL Listed Per CSA C22.2 No 94, File No E27525, File No E61997, IEC 60529, NEMA/EEMAC Type 4, 12, 13, Type 4, 12, 13, UL 50, 50E Listed, UL 508A Listed |
| Includes | Screws |
| Enclosure Material | Steel |
| Weight | 4 |
| Environment - MERCH | Washdown |
| Cover Closure Type | Clamp On |
| Cover Style | Solid |
| NEMA Enclosure Rating | 12, 4, 13 |
| Gasket Material | Neoprene |
| Hazardous Location Specification | Not Applicable |
| Body Material Thickness | 16 ga |
| Includes Knockouts | Knockouts Not Included |
| Compatible Panel Model Number | A6P6, A6P6G |
| Package Quantity | 1 |
