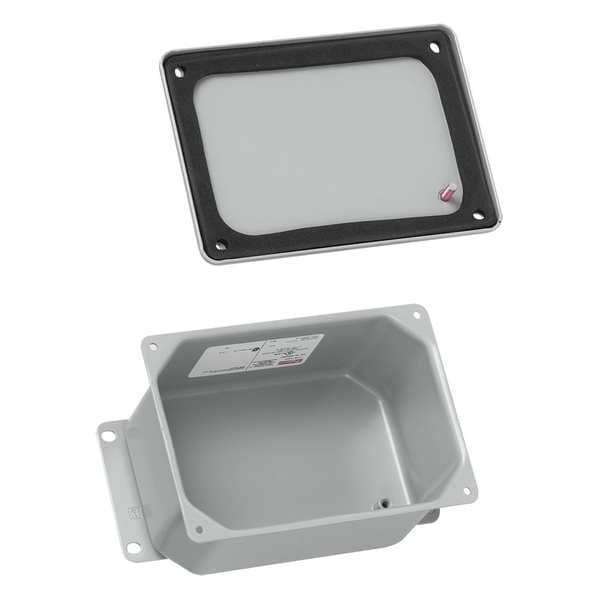

Carbon Steel Electrical Enclosures, 8 in H, 2-3/4 in D, 4 in W, NEMA 4, Screw On
| Item | Electrical Enclosures |
|---|---|
| Nominal Width | 4 in |
| Nominal Height | 8 in |
| Nominal Depth | 2-3/4 in |
| Enclosure NEMA Rating | NEMA 4 |
| Material of Enclosure | Carbon Steel |
| Closure Method | Screws |
| Enclosure Cover Type | Screw On |
| Knockouts | No |
| Metallic / Non-Metallic | Metallic |
| Color | Gray |
| Finish | Polyester Powder |
| Mounting | Wall |
| Solid / Clear Cover | Solid |
| Enclosure Cover Features | Flanged, Formed |
| Standards | CSA, File No 42186: Type 4, 12, and 13, cUL Listed Per CSA C22.2 No 94, File No E61997, IEC 60529, Type 4, 6, 12, 13, UL 508A Listed |
| Metal Gauge | 16 ga |
| Series | A51DR |
| Gasket | Neoprene |
| IP Rating | IP67 |
| Features | External-Wall Mounting Bracket |
| Enclosure Material | Steel |
| Capacity | 79.4 cubic in |
| Weight | 2.4 |
| Cover Style | Solid |
| Interior Volume | 79.4 in³ |
| Hazardous Location Specification | Not Applicable |
| Cover Closure Type | Screw On |
| Environment - MERCH | Washdown |
| Compatible Panel Model Number | Not Applicable |
| Body Material Thickness | 16 ga |
| NEMA Enclosure Rating | 12, 4, 13, 6 |
| Includes Knockouts | Knockouts Not Included |
| Gasket Material | Neoprene |
| Package Quantity | 1 |
