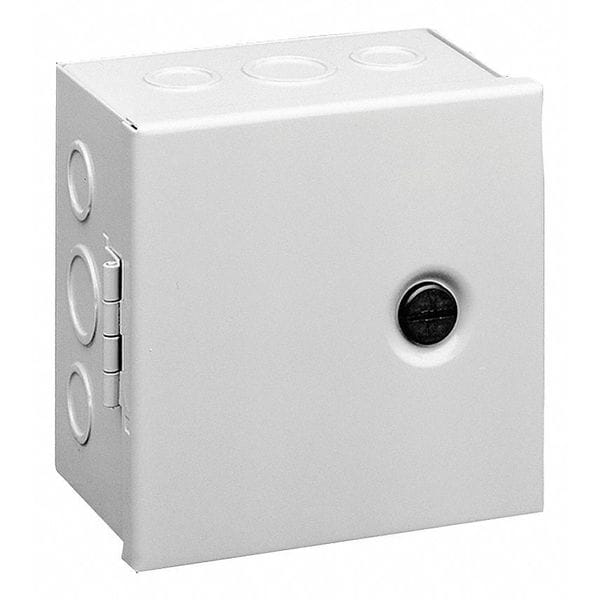

Carbon Steel Electrical Enclosures, 8 in H, 4 in D, 8 in W, NEMA 1, Hinged

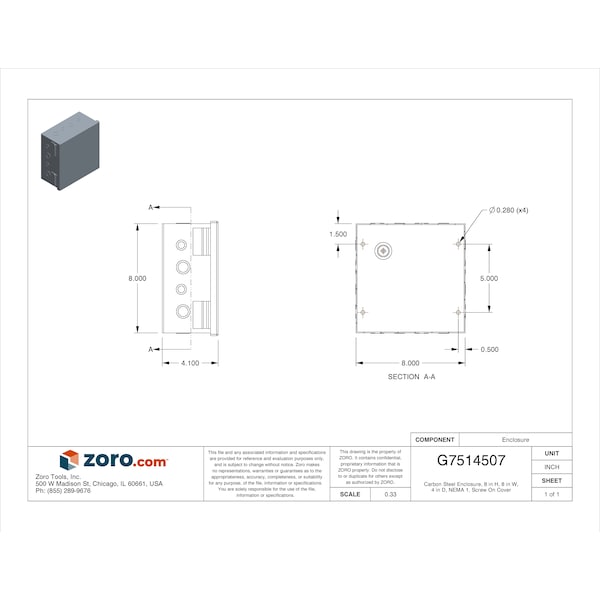

| CAD Available | Yes |
|---|---|
| Item | Electrical Enclosures |
| Nominal Width | 8 in |
| Nominal Height | 8 in |
| Nominal Depth | 4 in |
| Enclosure NEMA Rating | NEMA 1 |
| Material of Enclosure | Carbon Steel |
| Closure Method | 1/4 Turn Latch |
| Enclosure Cover Type | Hinged |
| Knockouts | Yes |
| Metallic / Non-Metallic | Metallic |
| Color | Silver |
| Finish | Polyester Powder |
| Mounting | Wall |
| Solid / Clear Cover | Solid |
| Features | Mounting Holes |
| Standards | CSA File No. 42184: Type 1, cUL Listed per CSA C22.2 No 40, File No E27525, IEC 60529, NEMA/EEMAC Type 1, UL 50, 50E Listed |
| Metal Gauge | 14/16 ga |
| IP Rating | IP30 |
| Series | A90HC |
| Enclosure Material | Steel |
| Weight | 5 |
| Includes Knockouts | Knockouts Included |
| Cover Closure Type | Hinged |
| NEMA Enclosure Rating | 1 |
| Body Material Thickness | 16 ga |
| Compatible Panel Model Number | Not Applicable |
| Hazardous Location Specification | Not Applicable |
| Cover Style | Solid |
| Environment - MERCH | Indoor |
| Package Quantity | 1 |
