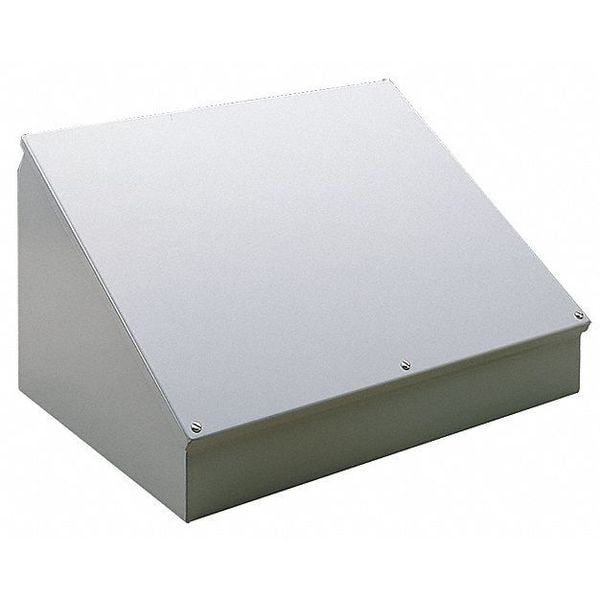

Mild Steel Electrical Enclosures, 16 in H, 11.09 in D, 20 in W, NEMA 12, Hinged

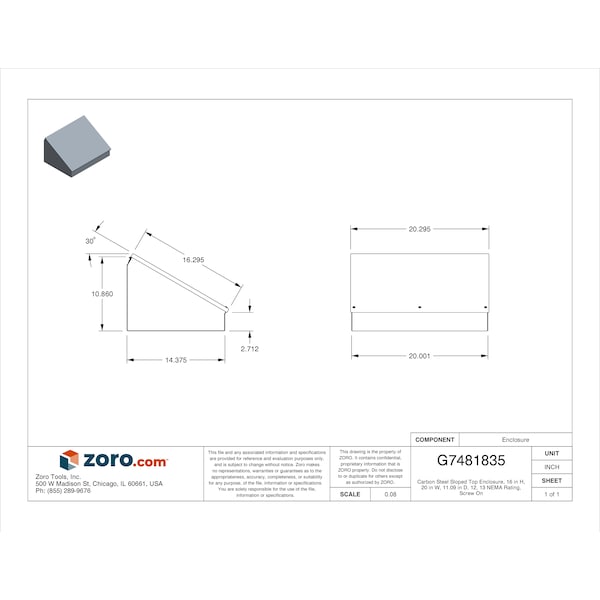

| CAD Available | Yes |
|---|---|
| Item | Electrical Enclosures |
| Nominal Width | 20 in |
| Nominal Height | 16 in |
| Nominal Depth | 11.09 in |
| Enclosure NEMA Rating | NEMA 12 |
| Material of Enclosure | Mild Steel |
| Closure Method | Screws |
| Enclosure Cover Type | Hinged |
| Knockouts | No |
| Metallic / Non-Metallic | Metallic |
| Color | Gray |
| Finish | Polyester Powder |
| Mounting | Pedestal, Table |
| Solid / Clear Cover | Solid |
| Metal Gauge | 14 ga |
| Features | Bonding Provision |
| IP Rating | IP65 |
| Series | C5 |
| Standards | File No. E61997 cUL Listed Per CSA C22.2 No. 94, IEC 60529, UL 508A Listed |
| Enclosure Cover Features | Screw Latch |
| Material | Carbon Steel |
| Gasket | Neoprene |
| Includes | Not Applicable |
| Cover Type | Screw On |
| Enclosure Material | Steel |
| Weight | 26.9 |
| Material Thickness | 14 ga |
| NEMA Enclosure Rating | 12, 13 |
| Gasket Material | Oil Resistant |
| Includes Knockouts | Knockouts Not Included |
| Package Quantity | 1 |
