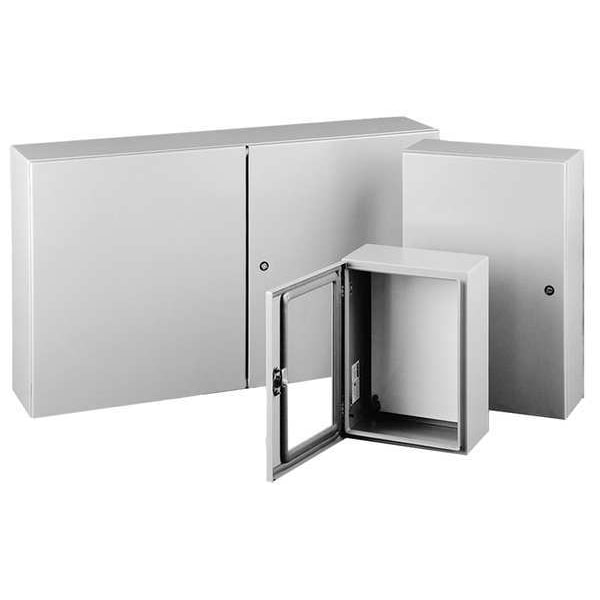

Mild Steel Electrical Enclosures, 60 in H, 12 in D, 36 in W, NEMA 4, 12, Hinged
| Item | Electrical Enclosures |
|---|---|
| Nominal Width | 36 in |
| Nominal Height | 60 in |
| Nominal Depth | 12 in |
| Enclosure NEMA Rating | NEMA 4, 12 |
| Material of Enclosure | Mild Steel |
| Closure Method | Latch |
| Enclosure Cover Type | Hinged |
| Knockouts | No |
| Metallic / Non-Metallic | Metallic |
| Color | Gray |
| Finish | Polyester Powder |
| Mounting | Wall |
| Solid / Clear Cover | Solid |
| Enclosure Cover Features | 1/4 Turn Latch with Screw Driver Slot |
| Series | CW1 |
| Metal Gauge | 14/16/18 ga |
| IP Rating | IP66 |
| Standards | cUL Listed Per CSA C22.2 No 94, File No E61997, IEC 60529, NEMA/EEMAC Type 4, 12, 13, UL 508A Listed |
| Includes | Panel Grounding Hardware and Sealing Washers, Panel Mounting Nuts |
| Gasket | Polyurethane |
| Interior Panel | 32FK41 |
| Enclosure Material | Steel |
| Features | 12 Indoor, dust-resistant |
| Weight | 155 |
| Latch Quantity | 1 |
| Hazardous Location Specification | Not Applicable |
| Cover Style | Solid |
| Includes Knockouts | Knockouts Not Included |
| Environment - MERCH | Washdown |
| Body Material Thickness | 14 ga |
| Compatible Panel Model Number | CP6036, CP6036G |
| Cover Closure Type | Hinged |
| Gasket Material | Seamless Foam-In-Place |
| NEMA Enclosure Rating | 12, 4, 13 |
| Package Quantity | 1 |
