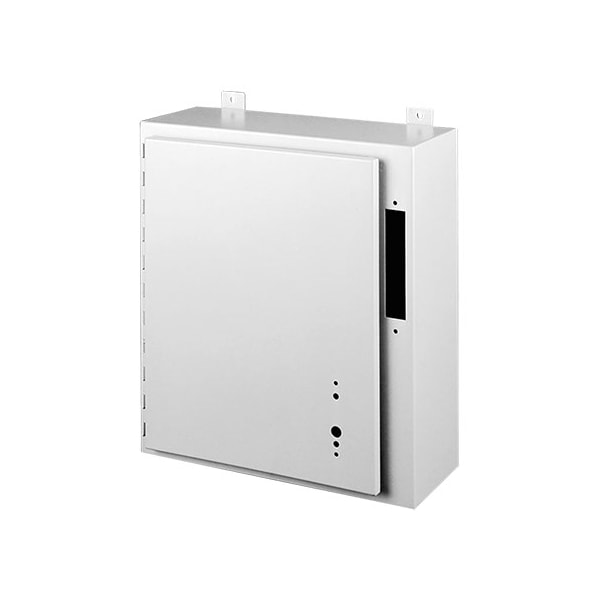

Mild Steel Electrical Enclosures, 60 in H, 16 in D, 38 in W, NEMA 12, Hinged
| Item | Electrical Enclosures |
|---|---|
| Nominal Width | 38 in |
| Nominal Height | 60 in |
| Nominal Depth | 16 in |
| Metallic / Non-Metallic | Metallic |
| Color | Gray |
| Finish | Powder Coated |
| Mounting | Wall |
| Material of Enclosure | Mild Steel |
| Standards | UL 508A Listed; Type 12, 13; File No. E61997; cUL Listed per CSA C22.2 No. 94; Type 12, 13; File No. E61997; NEMA/EEMAC Type 12, 13; CSA File No. 42186: Type 12; IEC 60529, IP65 |
| Enclosure NEMA Rating | NEMA 12 |
| IP Rating | IP65 |
| Features | 12 Indoor, dust-resistant |
| Enclosure Cover Type | Hinged |
| Solid / Clear Cover | Solid |
| Weight | 180 |
| Data Pocket Size | 12.00 x 12.00 in / 305 x 305 mm |
| Package Quantity | 1 |
