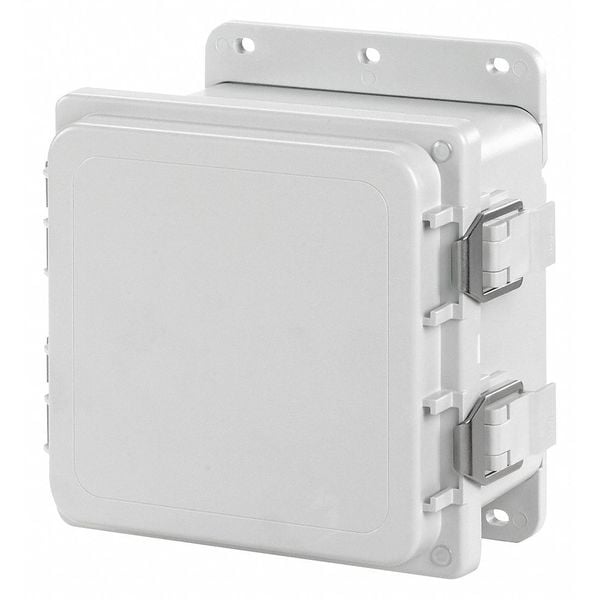

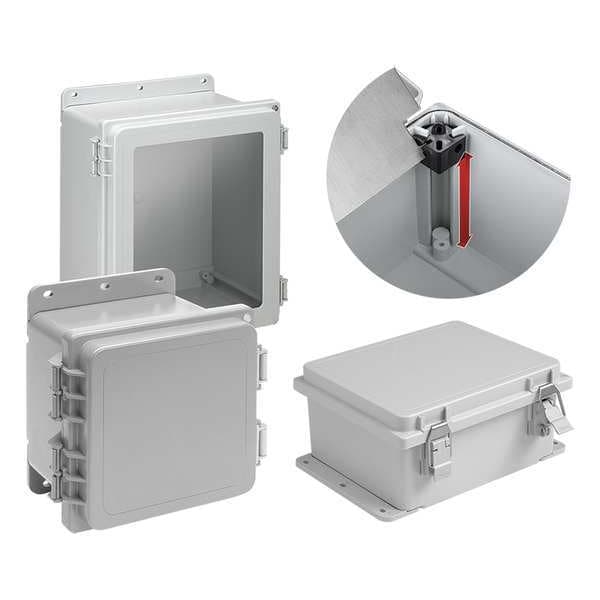

Non-Glass Filed Polyester Electrical Enclosures, 8.12 in H, 4.38 in D, 6 in W, NEMA 4X, Snap Hinge
| Item | Electrical Enclosures |
|---|---|
| Nominal Width | 6 in |
| Nominal Height | 8.12 in |
| Nominal Depth | 4.38 in |
| Enclosure NEMA Rating | NEMA 4X |
| Material of Enclosure | Non-Glass Filed Polyester |
| Closure Method | 1/4 Turn Latch |
| Enclosure Cover Type | Snap Hinge |
| Knockouts | No |
| Metallic / Non-Metallic | Non-Metallic |
| Color | Light Gray |
| Finish | Textured Polyester Powder |
| Mounting | Wall |
| Solid / Clear Cover | Solid |
| Enclosure Cover Features | Quick Release Latch |
| Includes | Clamp, Mounting Feet |
| Series | PCR |
| Standards | cUL Listed Per CSA C22.2 No 94, Enclosure Flammability Evaluated Per UL 508A, File No E61997, IEC 60529, Mounting Brackets Required to Meet UL/CSA External Mounting Requirements, NEMA/EEMAC Type 4, 4X, 12, 13, Type 4, 4X, 12, 13, UL 508A Listed, Window Flammability Evaluated Per UL 508A |
| Gasket | Polyurethane |
| IP Rating | IP66 |
| Interior Panel | 32FR94 |
| Features | 4X Watertight, corrosion-resistant |
| Enclosure Material | Polyester |
| Weight | 2.5 |
| NEMA Enclosure Rating | 12, 4, 13, 4X |
| Hazardous Location Specification | Not Applicable |
| Compatible Panel Model Number | A8P6AL |
| Environment - MERCH | Washdown and Corrosion Resistant |
| Cover Closure Type | Hinged |
| Includes Knockouts | Knockouts Not Included |
| Cover Style | Solid |
| Gasket Material | Polyurethane |
| Body Material Thickness | 0.12 in |
| Package Quantity | 1 |
