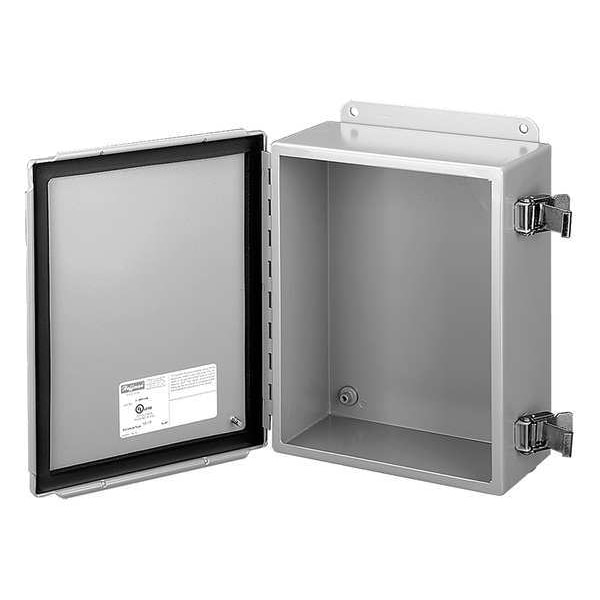

Steel Electrical Enclosures, 16 in H, 6 in D, 14 in W, NEMA 12, Screw On
| Item | Electrical Enclosures |
|---|---|
| Nominal Width | 14 in |
| Nominal Height | 16 in |
| Nominal Depth | 6 in |
| Enclosure NEMA Rating | NEMA 12 |
| Material of Enclosure | Steel |
| Closure Method | Screws |
| Enclosure Cover Type | Screw On |
| Knockouts | No |
| Metallic / Non-Metallic | Metallic |
| Color | Gray |
| Finish | Polyester Powder |
| Mounting | Wall |
| Solid / Clear Cover | Solid |
| Interior Panel | 32FR69 |
| Standards | CSA, File No 42184: Type 12, cUL Listed Per CSA C22.2 No 94, File No E27525, File No E61997, IEC 60529, NEMA/EEMAC Type 12 and 13, UL 50, 50E Listed, UL 508A Listed |
| Series | A51SC |
| Features | Weld Nuts for Mounting Panel and Terminals |
| Enclosure Cover Features | Screw Latch |
| Metal Gauge | 14/16 ga |
| IP Rating | IP65 |
| Gasket | Neoprene |
| Enclosure Material | Steel |
| Weight | 20 |
| Compatible Panel Model Number | A16P14, A16P14G |
| Cover Style | Solid |
| Includes Knockouts | Knockouts Not Included |
| Hazardous Location Specification | Not Applicable |
| Environment - MERCH | Dust Tight |
| Gasket Material | Neoprene |
| NEMA Enclosure Rating | 12, 13 |
| Cover Closure Type | Screw On |
| Body Material Thickness | 14 ga |
| Package Quantity | 1 |
