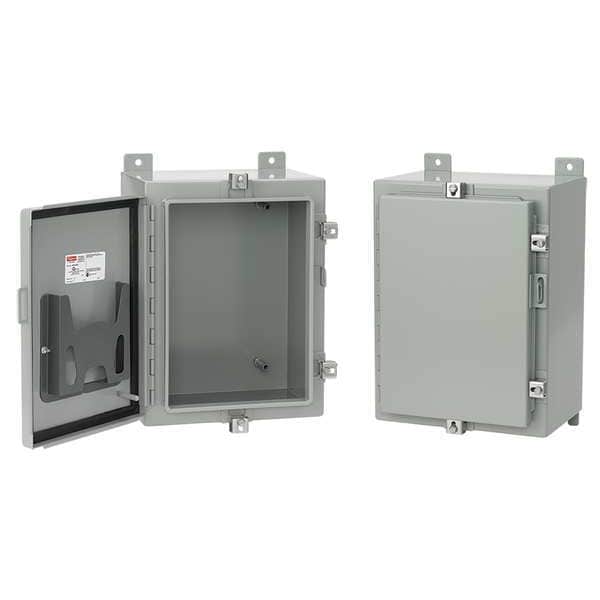

Steel Electrical Enclosures, 16 in H, 6 in D, 16 in W, NEMA 4, Hinged
| Item | Electrical Enclosures |
|---|---|
| Nominal Width | 16 in |
| Nominal Height | 16 in |
| Nominal Depth | 6 in |
| Enclosure NEMA Rating | NEMA 4 |
| Material of Enclosure | Steel |
| Closure Method | Clamps |
| Enclosure Cover Type | Hinged |
| Knockouts | No |
| Metallic / Non-Metallic | Metallic |
| Color | Gray |
| Finish | Polyester Powder |
| Mounting | Wall |
| Solid / Clear Cover | Solid |
| Series | A4 |
| Features | Data Pocket |
| Interior Panel | 32FT28 |
| Metal Gauge | 14/16 ga |
| Standards | CSA, File No 42186: Type 4 and 12, cUL Listed Per CSA C22.2 No 94, File No E61997, IEC 60529, NEMA/EEMAC Type 3, 4, 12, and 13, Type 4, 12, 13, UL 508A Listed |
| Gasket | Neoprene |
| Enclosure Cover Features | Clamps |
| IP Rating | IP66 |
| Enclosure Material | Steel |
| Weight | 22 |
| Clamp Quantity | 4 |
| Data Pocket | Small |
| Environment - MERCH | Washdown |
| Gasket Material | Seamless Foam-In-Place |
| Includes Knockouts | Knockouts Not Included |
| Cover Closure Type | Hinged |
| Body Material Thickness | 16 ga |
| Compatible Panel Model Number | A16P16, A16P16G |
| Hazardous Location Specification | Not Applicable |
| NEMA Enclosure Rating | 12, 4, 13 |
| Cover Style | Solid |
| Package Quantity | 1 |
