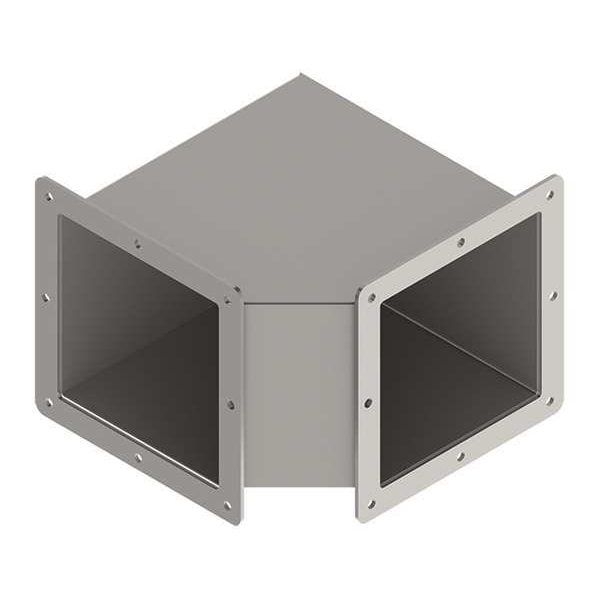

Wireway 90 Degree Elbow, 4X Type, NEMA 4X Rating, Stainless Steel, Unfinished
| Item | Wireway 90 Degree Elbow |
|---|---|
| With/Without Knockouts | No |
| NEMA Enclosure Type | 4X |
| Finish | Unfinished |
| Length | 6 in |
| Height | 9 in |
| For Use With | F66 Series Wireways |
| Width | 9 in |
| NEMA Rating | NEMA 4X |
| Material | Stainless Steel |
| Function | Used to Change The Direction of A Wireway Run |
| Standards | 12, 4X, CSA File 42184 Type 1, File No. E27524, IEC 60529, IP66, NEMA 4, UL 870 |
| Color | Silver |
| With Knockouts | No |
| Includes | Gaskets, Screws |
| Length (Straight Wireway) | 6 in |
| For Wireway Width x Height | 6 in x 6 in |
| Gauge | 16 ga |
| For Wireway Height | 6 in |
| For Wireway Width | 6 in |
| Thickness (T) (gauge) | 16 |
| Modification Services | Yes |
| Protection Rating | NEMA Type 12 |
| Wireway | Stainless Steel Feed-Through NEMA Type 4X Wireway |
| Thickness (T) (millimetre) | 1.59 |
| Height (H) (millimetre) | 152 |
| Type Number | Type 4X |
| IP Rating | IP66 |
| Type | Elbow |
| Height (H) (inch) | 6 |
| Width (W) (millimetre) | 152 |
| Width (W) (inch) | 6 |
| Thickness | 16 ga / 1.59 mm |
| Package Quantity | 1 |
