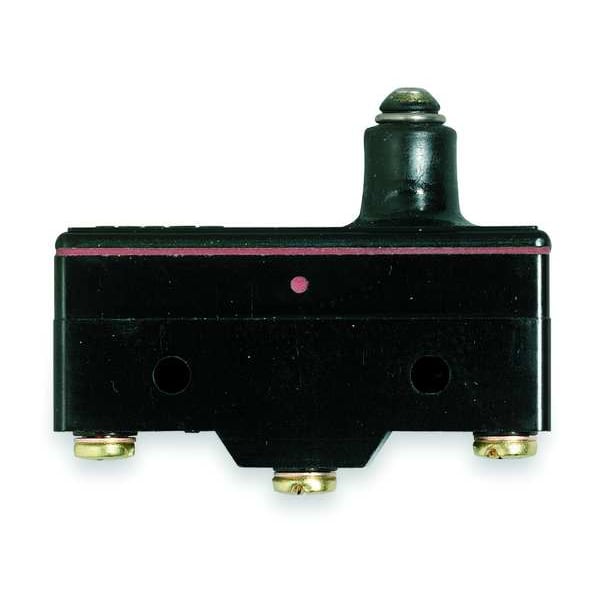

Interruptor de acción rápida industrial, actuador de émbolo, SPDT, Calificación de contacto de 15A @ 480V AC.
| Item | Snap Action Switch |
|---|---|
| Actuator Type - Snap Action Switch | Plunger |
| AC Contact Rating - Snap Action Switch | 15 A @ 480 V |
| DC Contact Rating - Snap Action Switch | 15 A @ 14 V |
| Contact Form- Switches | SPDT |
| Lever Actuator Length - Snap Action Switch | Not Applicable |
| Type of Actuator | Slim Spring Plunger |
| Mounting Dimension - Snap Action Switch | 1.03 in (Centers) |
| Release Force | 4 ozf |
| Operating Force | 19.1 oz |
| Watertight - Snap Action Switch | No |
| Over Travel | 0.063 in |
| Contact Form | 1NO/1NC |
| Electrical Connection - Snap Action Switch | Screw |
| Actuator Length | 1.03 in |
| Housing Material | Phenolic |
| Operating Temp. Range | -25 Degrees to 80 Degrees C |
| Voltage Rating | 480VAC |
| Terminal Type | Screw |
| Max. Pretravel | 0.075 in |
| Mounting Dimension | 1.03" Centers |
| Differential Travel | 0.002 in |
| Current Rating | 15a |
| Series | Z |
| AC Contact Rating | 15 A @ 480 V |
| DC Contact Rating | 15 A @ 14 V |
| Electrical Connection | Screw |
| Roller Material | Not Applicable |
| Roller Diameter | Not Applicable |
| Roller Position | Inside Offset |
| Lever Actuator Length | Not Applicable |
| Center Mounting Hole Distance | 1.03 in |
| Operating Temperature - Maximum | 176 deg F |
| Actuator Style | Plunger |
| Operating Force - Minimum | 2.45 N |
| Operating Temperature - Minimum | -13 deg F |
| Differential Travel - Minimum | Not Applicable |
| Roller Adjustability | Not Applicable |
| Roller Width | 0.16 in |
| Body Material | Phenolic |
| Differential Travel - Maximum | 0.002 in |
| Operating Force - Maximum | 5.31 N |
| Pretravel | 0.075 in |
| Overtravel | 0.063 in |
| Package Quantity | 1 |
