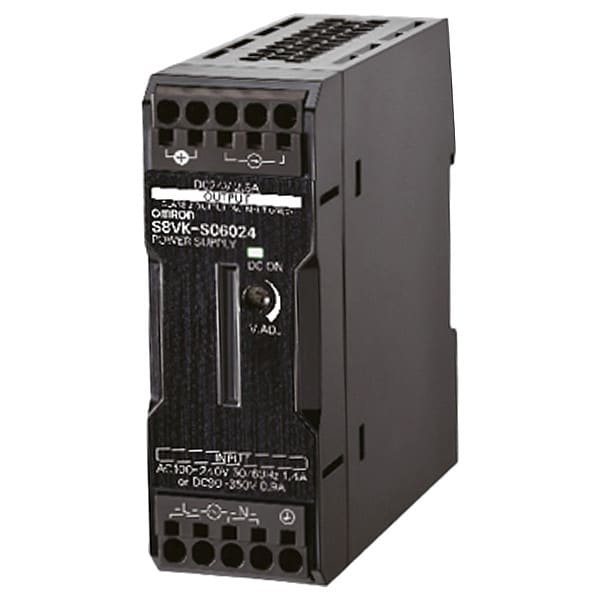

Switching Power Supply, 265/300V AC; 85/264V AC; 90/350V DC, 60 W, 2.5 A, DIN Rail
| Item | Switching Power Supply |
|---|---|
| Input Voltage | 265/300V AC; 85/264V AC; 90/350V DC |
| Output Power - Rated | 60 W |
| Current - Output | 2.5 A |
| Mounting | DIN Rail |
| Phase - Electrical | Single |
| Width | 32 mm |
| Hz | 50/60 Hz |
| Height | 94.7 mm |
| Status Indicator | Green LED |
| Output Noise | 190 mV |
| IP Rating | IP20 |
| Power Rating | 60 W |
| Features | Five Years Warranty, Power Boost Function at 120% |
| Output Voltage | 24V DC |
| Operating Temp. Range | -40 to 70 deg C |
| Style | Switching |
| Depth | 90 mm |
| Output Amps | 2.5 A |
| Hold Up Time | 20 msec, 95 msec |
| Series | S8VK-S |
| Standards | EN/IEC 60529 |
| Maximum Efficiency @ 115V AC | 87% |
| Mean Time Between Failures (MTBF) | 640,000 hr |
| Maximum Efficiency @ 230V AC | 89% |
| Operating Temperature - Minimum | -40 deg F |
| Current - Peak | 3 A |
| Operating Temperature - Maximum | 158 deg F |
| Manufacturer Warranty | 5 yr |
| Special Features | LED Diagnostic Indicators, Overload Protection, Overvoltage Protection, Parallel Capability, Series Operation |
| Start Up Time - Maximum | 1,000 msec |
| Current - Inrush | 32 A |
| Input Frequency - Nominal | 50/60 Hz |
| Package Quantity | 1 |
