The NX Series tuning free servo motors offer high performance and high accuracy control. Each high performance servo system features 4 control modes and is capable of high accuracy control. Smooth operation can be achieved in high inertia loads or belt drive applications without manual tuning. Four Control Modes: Position Speed Torque Tension
| Output Power | 200 W (1/4 HP) |
|---|---|

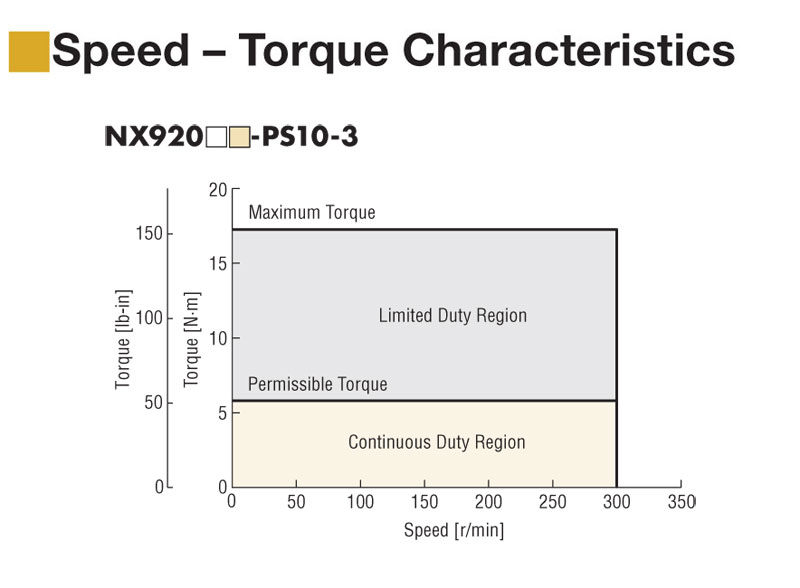

| Rated Torque | 5.73 N*m |

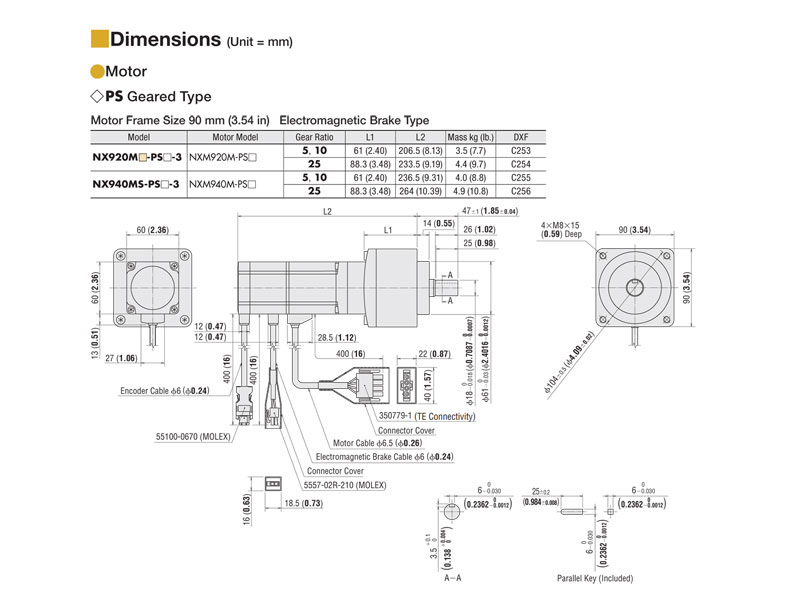

| Motor Frame Size | 90 mm |
| Input Current | 0.3 A |
| Input Voltage | No abnormality is judged with the following application for 1 minute: Case - Motor Windings 1.5 kVAC 50 Hz or 60 Hz Case - Electromagnetic Brake Windings 1.0 kVAC 50 Hz or 60 Hz |
| Ip Rating | IP65 (Excluding Installation Surface and Connector Locations.) |
