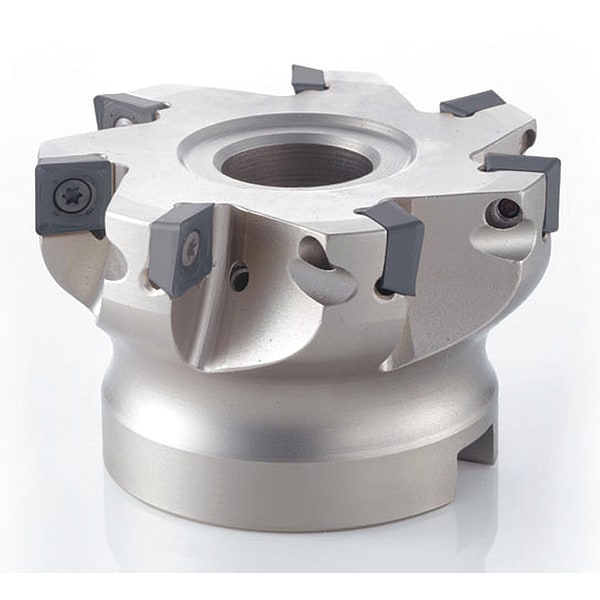

Indexable Face Mill, HSK40 Series, 0.020 in to 0.120 in Depth of Cut
| Item | Indexable Face Mill |
|---|---|
| Series | HSK40 |
| Overall Length | 1.575 in |
| Depth of Cut | 0.12 in |
| Shank Type - Machining | Straight |
| Coolant Fed | Coolant Through |
| Cutting Direction | Right Hand |
| Insert Size | 9.07 x 9.07 mm |
| Standards | DIN 69893 |
| Features | 3-Dimensional Chip Breaker, Long Insert Life, Superior Performance |
| Connection Size | HSK40 |
| Shank Dia. | 10 mm |
| Min. Cutting Dia. | 2 in |
| Cutting Application | Face Milling, Side Milling |
| Arbor Dia. | 3/4 in |
| Insert Holding Type | Screw |
| Side Cutting Edge Angle | 90 deg |
| Number of Inserts | 6 |
| Insert Cutting Edge Length | 9 mm |
| Insert Style | SD_T09 |
| Number of Coolant Holes | 6 |
| Hub Outside Dia. | 1.772 in |
| ANSI Code | PSF09R200A075-6 |
| Compatible Hardware | Clamping Screw, Wrench |
| Insert Shape | Square |
| Max. Cutting Dia. | 2 in |
| Package Quantity | 1 |
