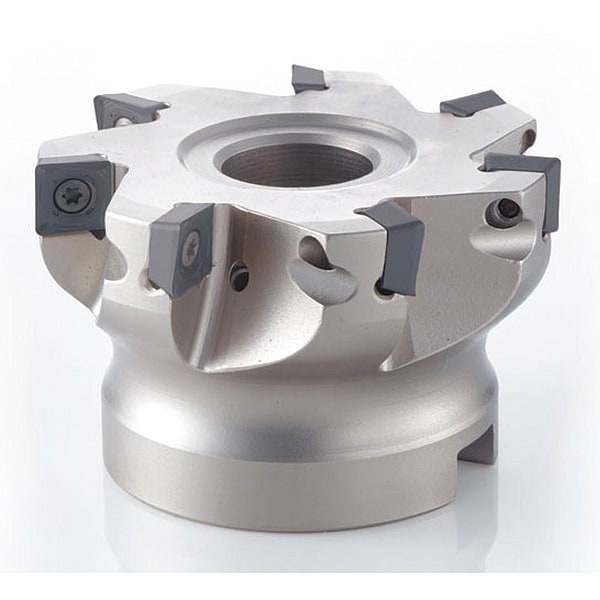

Indexable Face Mill, HSK80 Series, 0.020 in to 0.120 in Depth of Cut
| Item | Indexable Face Mill |
|---|---|
| Series | HSK80 |
| Overall Length | 1.968 in |
| Depth of Cut | 0.12 in |
| Coolant Fed | Coolant Through |
| Shank Dia. | 8 mm |
| Cutting Direction | Right Hand |
| Shank Type - Machining | Straight |
| Connection Size | HSK80 |
| Standards | DIN 69893 |
| Insert Size | 9.07 x 9.07 mm |
| Features | 3-Dimensional Chip Breaker, Long Insert Life, Superior Performance |
| ANSI Code | PSF09R300A100-9 |
| Insert Cutting Edge Length | 9 mm |
| Arbor Dia. | 1 in |
| Number of Inserts | 9 |
| Compatible Hardware | Clamping Screw, Wrench |
| Hub Outside Dia. | 2.362 in |
| Insert Shape | Square |
| Insert Holding Type | Screw |
| Side Cutting Edge Angle | 90 deg |
| Insert Style | SD_T09 |
| Cutting Application | Face Milling, Side Milling |
| Min. Cutting Dia. | 3 in |
| Number of Coolant Holes | 9 |
| Max. Cutting Dia. | 3 in |
| Package Quantity | 1 |
