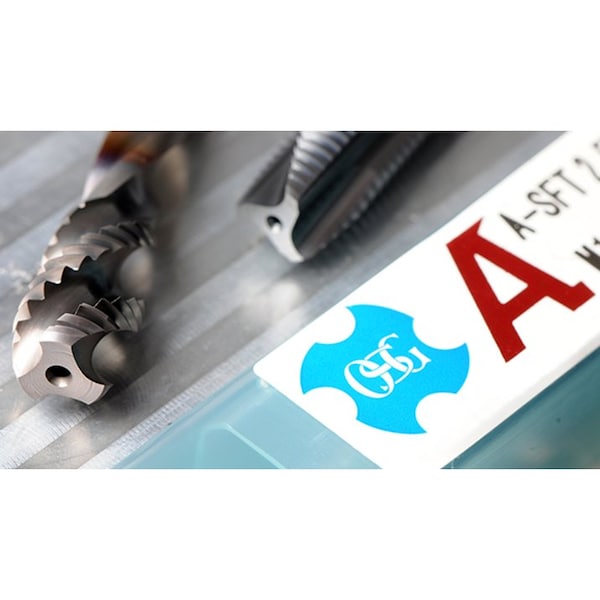

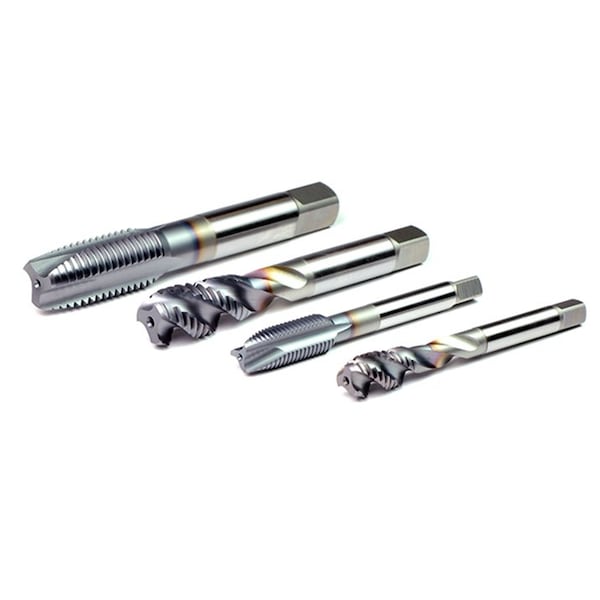

Spiral Flute Tap, M20-2.50, Modified Bottoming, Metric Coarse, 4 Flutes, TiCN
| Item | Spiral Flute Tap |
|---|---|
| Tap Thread Size | M20-2.50 |
| Tap Chamfer | Modified Bottoming |
| Tap Thread Type | Metric Coarse |
| Number of Flutes | 4 |
| Tap Finish | TICN |
| Tap Size | M20 |
| Tap Style | Spiral Flute |
| Standards | DIN, ANSI |
| Thread Direction | Right Hand |
| Shank Dia. | 16.3 mm |
| Tap Material | Powdered Metal |
| Tap Grouping | Tap |
| Overall Length | 140 mm |
| Thread Length | 62 mm |
| Tap Dimension Type | Metric |
| Series | 16500 |
| Cutting Direction - Machining | Right Hand |
| Coolant Fed | Non-Coolant Through |
| Thread Size | M20x2.5 |
| Shank Type - Machining | Straight |
| Drill Bit Size | 17.4 mm, 17.56 mm, 17.73 mm, 17.89 mm, 18.05 mm |
| Tap Length Standard | DIN |
| Material Grade - Machining | 16500 |
| 55% Thread Drill Size | 18.2 mm |
| 65% Thread Drill Size | 45/64 in |
| Secondary Material Application | Aluminum, Cast Iron, Steel |
| Features | Accelerates chip evacuation, High Wear Resistance, Long tool life, Stabilizes Chip Shape |
| 75% Thread Drill Size | 17.50 |
| Thread Pitch | 2.5 mm |
| Measurement System | Metric |
| Extended Neck | Yes |
| Primary Material Application | Hardened Steel, Stainless Steel, Steel |
| Thread Limit | D7 |
| Shank Length | 78.2 mm |
| Primary Material Application ISO Code | P, H, M |
| Tap Shank Standard | DIN |
| Secondary Material Application ISO Code | N, K, P |
| Thread Standard | Metric Coarse |
| Helix Angle | Variable |
| Square Size | 12.42 mm |
| Size | M20 |
| List Number | 16500 |
| Number of Pieces | 1 |
| Pitch Diameter Limit | D7 |
| Package Quantity | 1 |
