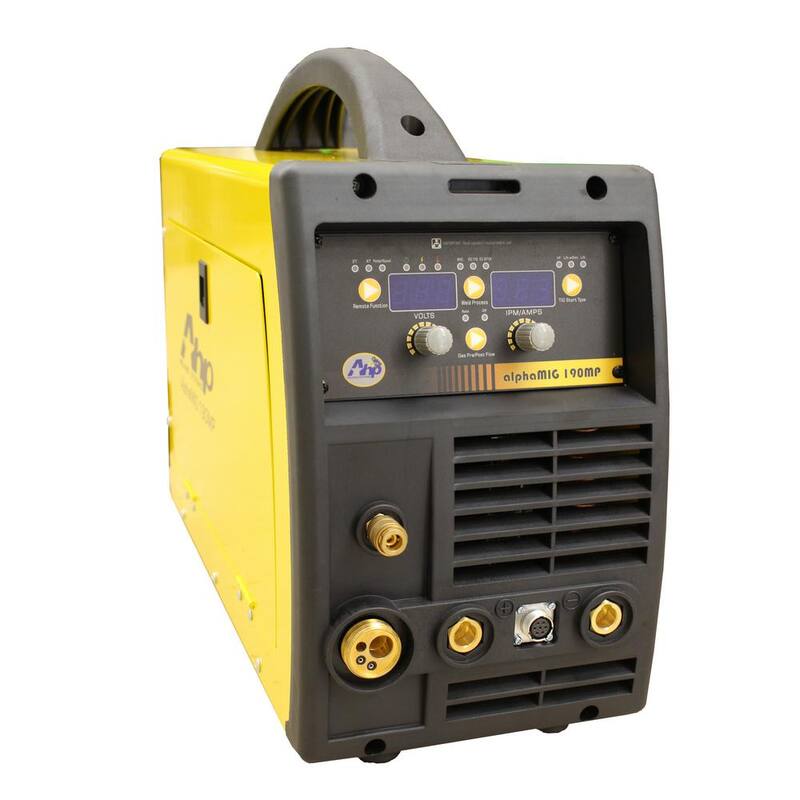

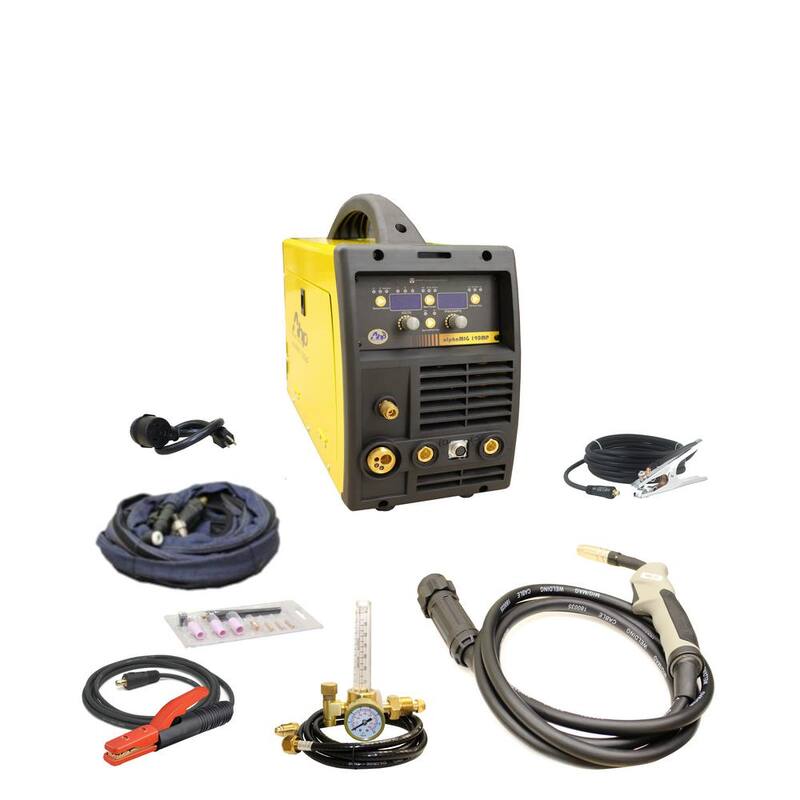

The AlphaMIG a new multi-process unit designed with the small fabricator and DIY guy in mind, the combination of DC MIG, DC TIG, and DC Stick functions make this a perfect choice for anyone needing portability or wanting to conserve space. This unit is dual voltage - 120-Volt or 240-Volt (120-Volt adapter is included). 240V gives you the most output.It comes with most everything including TIG and Stick torches you'll need to get started.With up to 200 Amp of MIG output, this takes you easily into the 1/4 in.-3/8 in. range of capacity (multi-pass). The MIG function delivers, smooth, crisp welds. Dual LED displays and stepless adjustment allow you to precisely set your values.The DC TIG function of the welder allows you to weld all metals except Aluminum and Magnesium. The AlphaMIG 191mp offers High Frequency (touchless) arc starting, as well as lift arc starting, while others offer just lift start or an inferior "scratch start" add-on kit. Additionally, the TIG function features offers built-in solenoid for TIG gas flow control, eliminating the need for a gas valve torch or "TIG Rig". At the maximum180A output for DC TIG, there isn't much you can't tackle with almost all metals (except Aluminum and Magnesium).The DC Stick function operates common fabrication rods like E7014, E6013, and E7018. It delivers smooth, quiet welds with minimal amounts of spatter and noise. With a maximum of 160A DC Stick output, you'll be able to weld with any 1/8 in. and some 5/32 in. welding rods.
| Duty Cycle (%) |
25 |
| Engine Power |
Electric (AC) |
| Gun Type |
MIG |
| Included |
Additional Tips,Hose,Kit,Tips,Torch |
| Input Power (Volts) |
120 |
| Material Application Thickness (in.) |
0.375 |
| Maximum amperage output (amps) |
180 |
| Minimum amperage output (amps) |
10 |
| Process Application Type |
DC Pulsed TIG (GTAW-P),DC Stick (SMAW),MIG |
| Rated Output (Volts) |
24 |
| Returnable |
90-Day |
| Welder Type |
Arc,MIG,Multi-Process,Stick,TIG |
| Manufacturer Warranty |
3 years warranty |
| Product Depth (in.) |
23 in |
| Product Height (in.) |
17 in |
| Product Width (in.) |
9 in |
