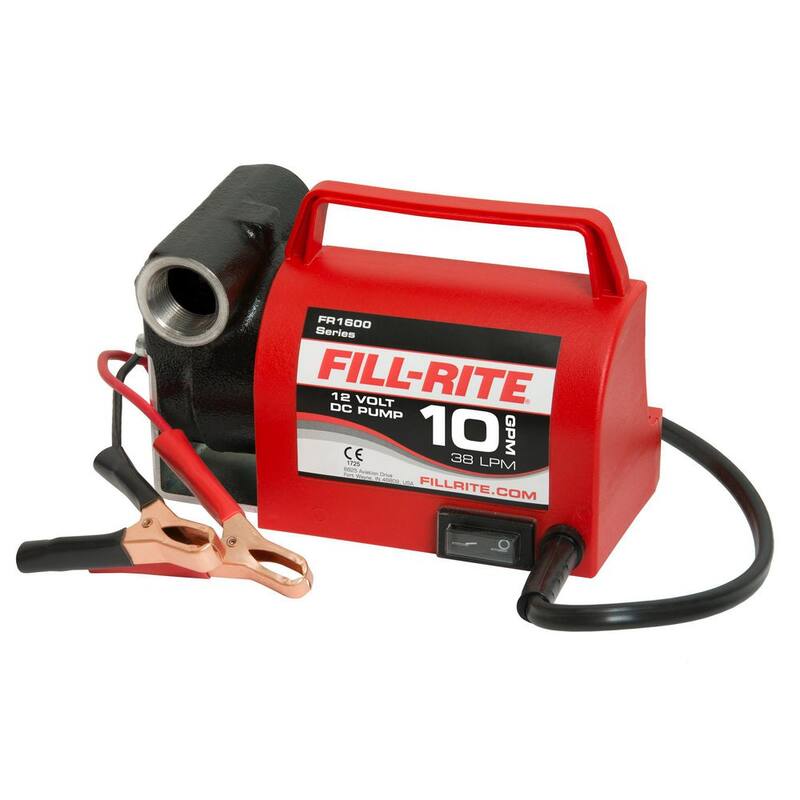

The 1600 series from FILL-RITE is a DC 12-Volt positive displacement rotary vane fuel transfer pump designed to be a standard duty portable pump for the transfer of diesel, antifreeze, and light oils. This product is perfect for marine, recreation, and commercial/industry applications where there is a need to move the pump between storage tanks. Model FR1612 is a pump only package with no accessories included
| Amperage (A) | 17 A |
|---|---|
| Cord Length (ft.) | 6.5 ft |
| Discharge Flow @ 0 ft. (gallons/hour) | 660 |
| Discharge Flow @ 10 ft. (gallons/hour) | 600 |
| Features | Corrosion Resistant,Self-Priming |
| Head Pressure (ft.) | 35 |
| Housing Material | Cast-Iron |
| Impeller Material | Steel |
| Included | Hardware |
| Inlet Connection | Threaded female |
| Maximum Discharge Flow (gallons/hour) | 600 |
| Maximum Horsepower (hp) | 1/5 |
| Maximum Pressure (PSI) | 15 PSI |
| Maximum Working Temperature (F) | 105 |
| Minimum working temperature (F) | -13 |
| Outlet Connection | Threaded female |
| Pack Size | 1 |
| Power Type | Electric |
| Power Type Required | DC |
| Product Weight (lb.) | 8 lb |
| Pump Switch Type | Electronic |
| Returnable | 90-Day |
| Vertical Lift (ft.) | 8 |
| Voltage | 12v |
| Certifications and Listings | CE Certified |
| Manufacturer Warranty | 1 Year |
| Product Depth (in.) | 6 in |
| Product Height (in.) | 4 in |
| Product Width (in.) | 7 in |
