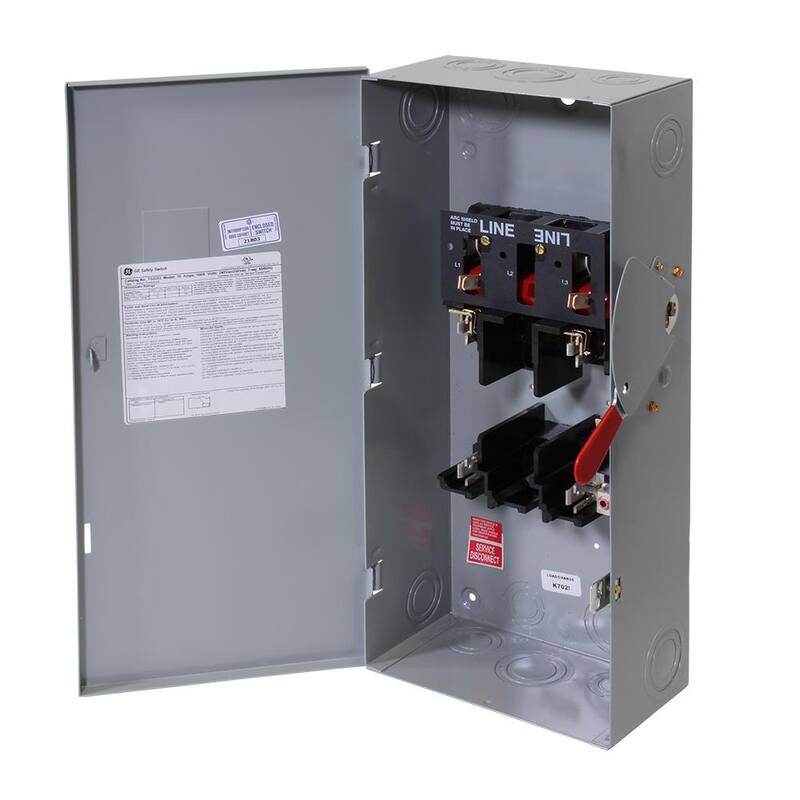

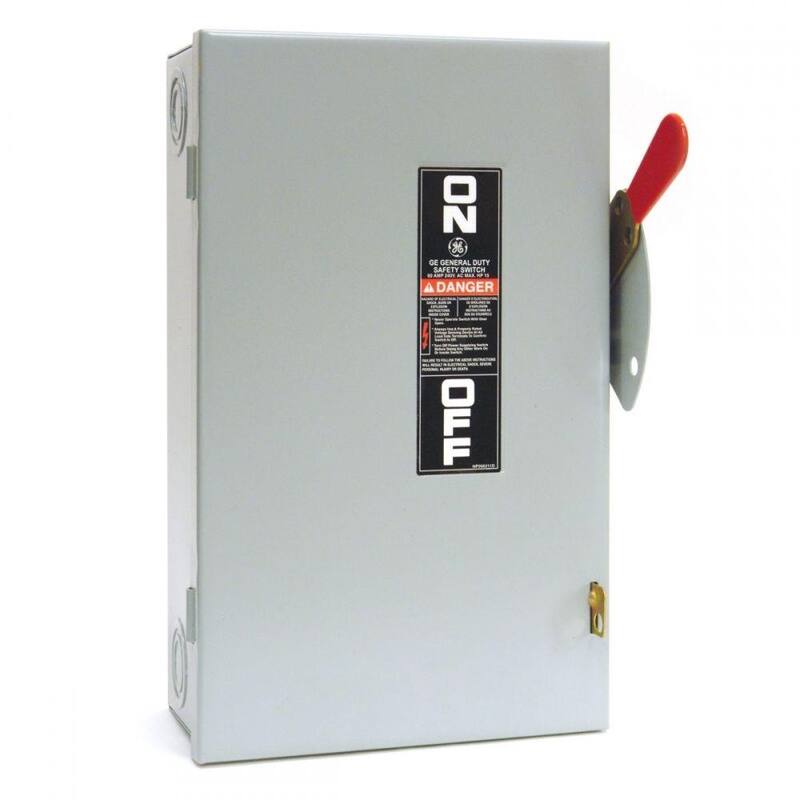

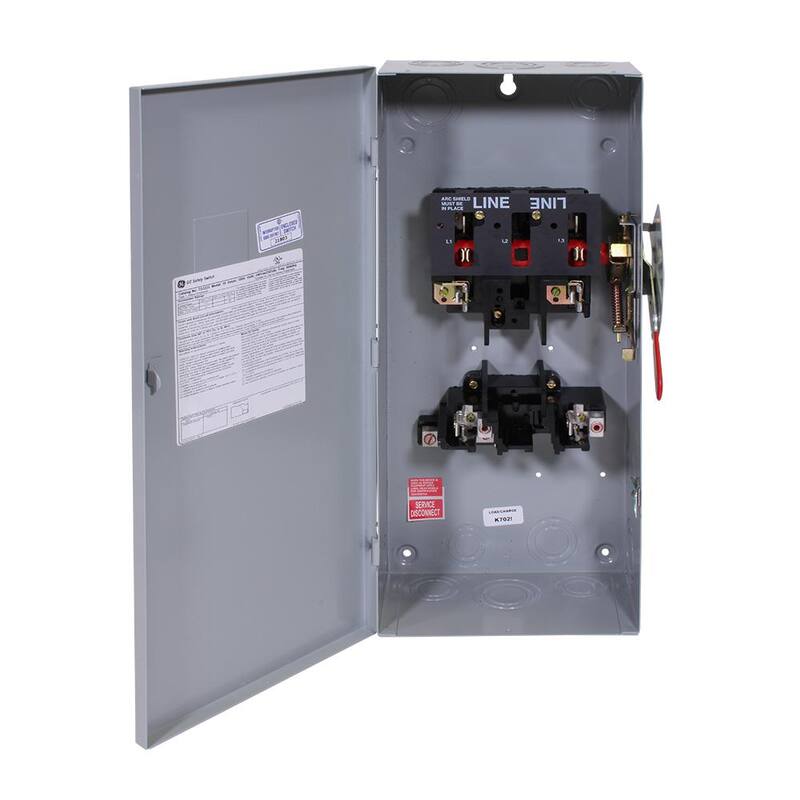

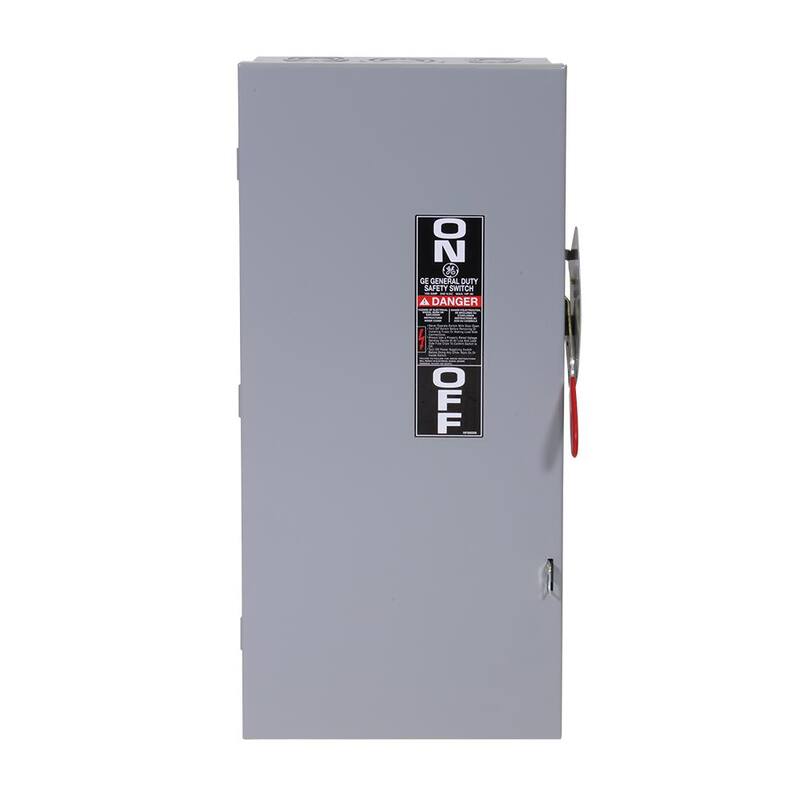

With a wide, unobstructed gutter and a removable interior, this GE 100 Amp 240-Volt Fusible Indoor General-Duty Safety Switch offers quick and easy wire pulling and lug connections. Designed for residential and light commercial applications where duty is not severe, this safety switch features a 3-point mounting pattern that simplifies installation and ganging in tight quarters.
| Automatic/Manual | Manual |
|---|---|
| Disconnect Type | Safety Switch |
| Electrical Product Type | Disconnect |
| Features | Mountable,On/Off Switch,Overload Protection,Short Circuit Protection |
| Fused | Fused |
| Indoor/Outdoor | Indoor |
| Inlet Configuration | No Receptacle |
| Maximum Amperage (A) | 100 |
| Maximum Wattage (W) | 0 W |
| NEMA Configuration | NEMA 1 |
| Phase Type | 1 Phase |
| Power Distribution Features | Fusible |
| Product Weight (lb.) | 16 lb |
| Returnable | 90-Day |
| Type | Safety Switch |
| Voltage (V) | 240 |
| Certifications and Listings | UL Listed |
| Manufacturer Warranty | One year warranty from first use |
| Product Depth (in.) | 9.9 in |
| Product Height (in.) | 21.05 in |
| Product Width (in.) | 10.55 in |
