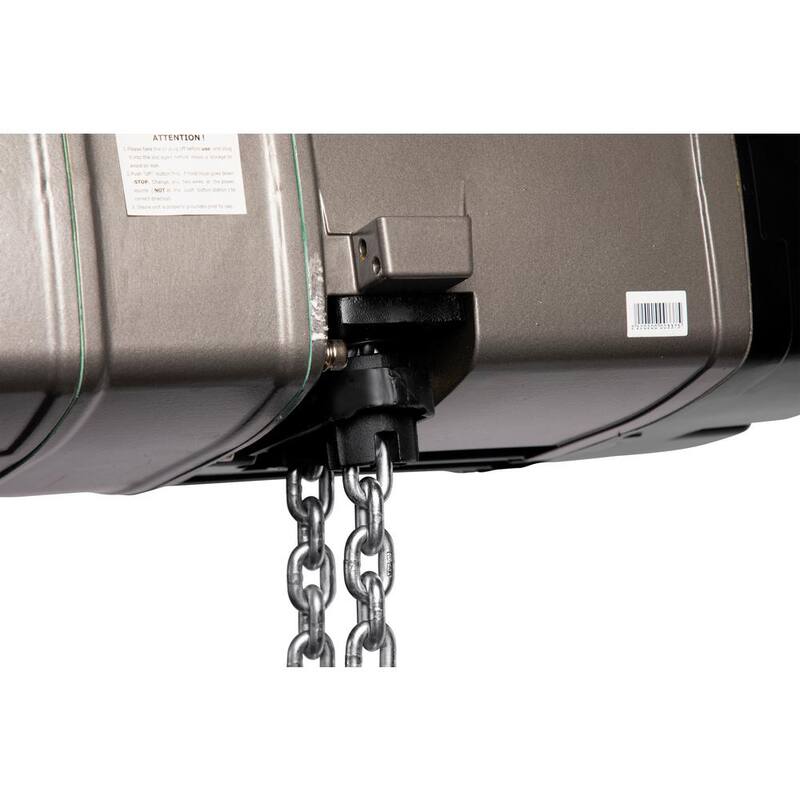

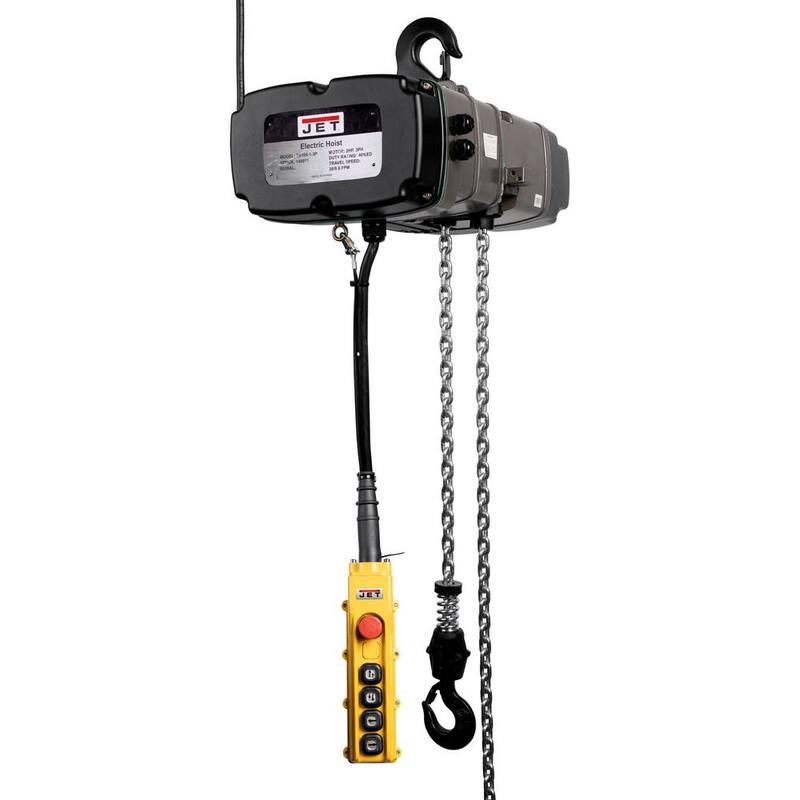

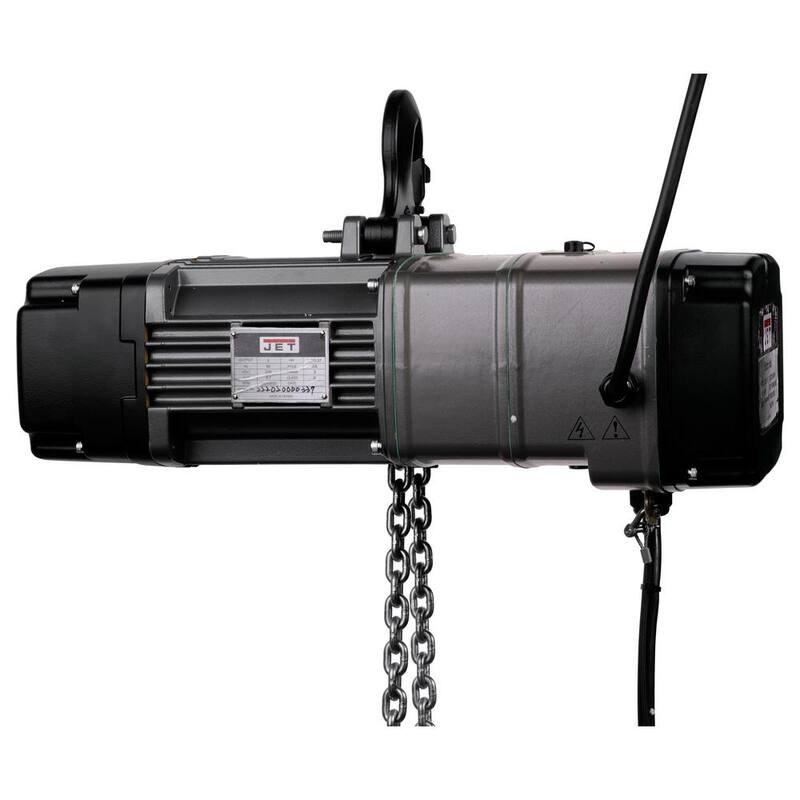

Jet TS Series electric hoist is designed and built for safety, durability, and efficient operation in the toughest industrial applications. Designed with 2-speeds you can move materials quickly and safely. Allowing your material to then slow down to be placed exactly where you need it without the excessive bump firing. Additionally, a 2-in-1 mechanical brake and overload protection assures you of safety first on the jobsite. This new system will brake quickly while providing protection from overloading the hoist. We engineered this hoist to keep the operator safe and prolong the life of your tool. Lastly a patented gear limit switch will allow precise control of the stopping point in both directions. This feature will prolong the life of the hoist and help avoid possible damage to the unit. All of this with safe lifting speeds up to 33 ft. per minute and as low as 3 ft. per minute to give you the ability to be more efficient with every load. The TS series is available from 1/2-ton to 5-ton capacities. Let's Get to Work.
| Amperage (A) | 6.9 A |
|---|---|
| Color Family | Gray |
| Features | Overload Limiting Clutch,Swivel Load Hook,Waterproof |
| Full load lifting speed (ft./min.) | 33 |
| Full load lowering speed (ft./min.) | 33 |
| General Part Type | Engine Hoist |
| Horsepower (hp) | 1.5 hp |
| Ideally Used For | General Automotive,Heavy-Duty,Shop Cranes |
| Included | Chain |
| Material | Steel |
| Maximum Lift Height (in.) | 120 in |
| Motor phase | Three Phase |
| Mount type | Hook mount |
| Product Weight (lb.) | 117 lb |
| Reconditioned | No |
| Returnable | 90-Day |
| Voltage (V) | 230 V |
| Weight Capacity (lb.) | 1000 lb |
| Certifications and Listings | CE Certified |
| Manufacturer Warranty | 2 Year |
| Control cord length (ft.) | 6 |
| Pendant drop (ft.) | 6 |
| Product Depth (in.) | 26.772 in |
| Product Height (in.) | 23.622 in |
| Product Width (in.) | 19.685 in |
