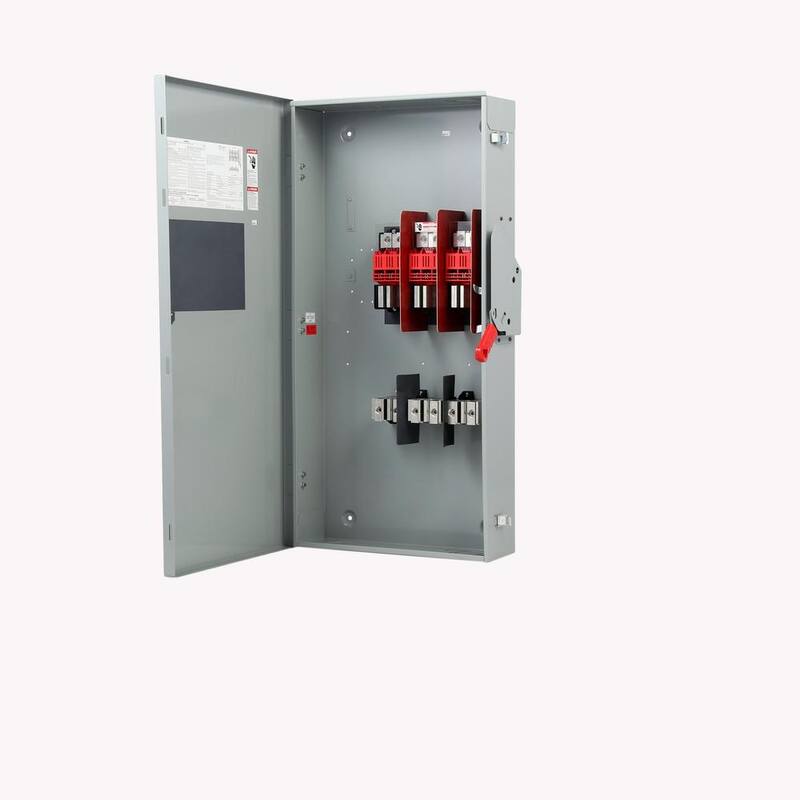

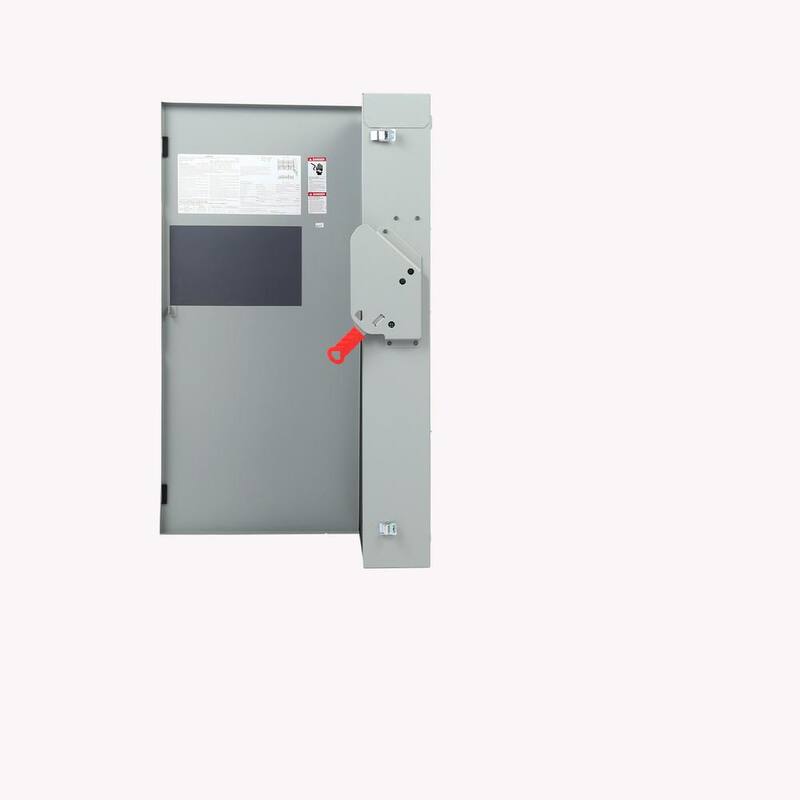

Heavy Duty Safety Switches are available in 30-1200A ratings and in Type 1, 3R, 12 and 4X enclosures. Both fusible and non-fusible versions are offered. They can be used on circuits that are rated through 200K when protected by or used with Class R or J fuses. They feature quick make and break operation and visible blade construction.
| Automatic/Manual | Manual |
|---|---|
| Disconnect Type | Safety Switch |
| Electrical Product Type | Safety Switch |
| Features | Mountable,On/Off Switch,Overload Protection,Short Circuit Protection |
| Fused | Fused |
| Indoor/Outdoor | Indoor |
| Maximum Amperage (A) | 600 A |
| Maximum Wattage (W) | 0 W |
| NEMA Configuration | NEMA 1 |
| Phase Type | 1 Phase |
| Power Distribution Features | Fusible |
| Product Weight (lb.) | 98 lb |
| Returnable | 90-Day |
| Type | Safety Switch |
| Voltage (V) | 600 V |
| Certifications and Listings | ANSI Certified,UL Listed |
| Manufacturer Warranty | Standard Limited Warranty |
| Product Depth (in.) | 6.94 in |
| Product Height (in.) | 45.32 in |
| Product Width (in.) | 22.40 in |
