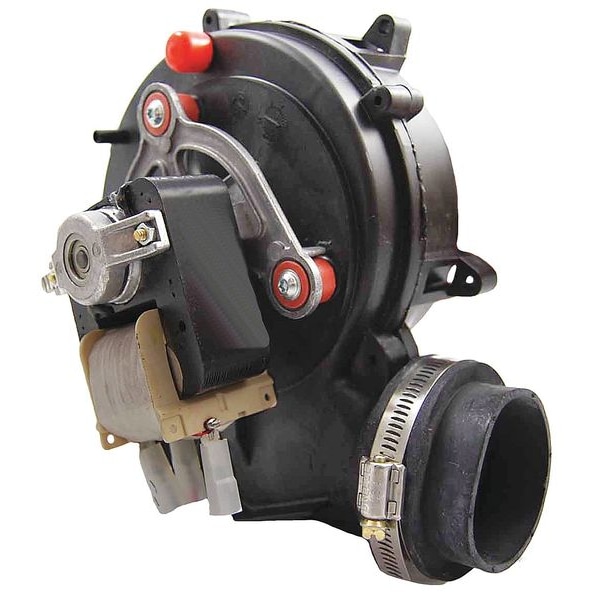

Draft Inducer, 115, Metal, 8 1/2 in W, 5 1/4 in H, 1.9/2.4" Inlet and Outlet Dia.
| Inlet and Outlet Dia. (In.) | 1.9/2.4" |
|---|---|
| Item | Draft Inducer |
| Type | Replacement |
| Voltage | 115 V |
| Depth (In.) | 8-1/2 |
| HP | 1/50 hp |
| Construction Material | Metal |
| Amps | 1.80/1.10A |
| Includes | Rubber Boot |
| Height (In.) | 5-1/4 |
| For Use With Mfr. Model Number | 5KSB46GF0003S, B48330001 |
| Fits Brand | Goodman |
| Replaces | GE 5KSB46GF0003, Goodman 5KSB46GF0003, Goodman 5KSB46GF0003S, Goodman B483001, Goodman B483001S, Goodman B48330001, Goodman B4833001, Goodman B4833001S |
| Agency Compliance | CSA, UL |
| Width (In.) | 8-1/2 |
| Application | Furnaces |
| Number of Speeds | 2 |
| RPM | 3200/2800 |
| Bearings | Ball |
| Enclosure | Open |
| Frame | C-Frame |
| Class | H |
| Overload Protection | Automatic |
| Motor Type | Shaded Pole |
| Nameplate Voltage | 115V AC |
| Current | 1.8/1.1 A |
| Outlet Shape | Round |
| Phase | 1 |
| Inlet Diameter | 1-7/8 in |
| Maximum Motor Speed | 3,200 rpm |
| Overall Width | 8-1/2 in |
| Outlet Width | Not Applicable |
| Maximum Static Pressure | 0.125 in wc |
| Standards | UL Listed, CSA Certified |
| Includes Motor | Yes |
| Maximum Inlet Air Temperature | 40 deg C |
| Maximum Motor Horsepower | 0.1 HP |
| Overall Depth | 8-1/2 in |
| Frequency | 60 Hz |
| Overall Height | 5-1/2 in |
| Outlet Diameter | 2-3/8 in |
| For Fuel Type | Natural Gas |
| Motor Insulation Class | H |
| Replacement For Manufacturer Model Number | 5KSB46GF0003, 5KSB46GF0003S, B483001, B483001S, B48330001, B4833001, B4833001S |
| Compatible with Brand | GE, Goodman |
| For Use With | 5KSB46GF0003S, B48330001, Goodman |
| Outlet Height | Not Applicable |
| Housing Material | Plastic |
| Blower Type | Induced Draft Blower |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
