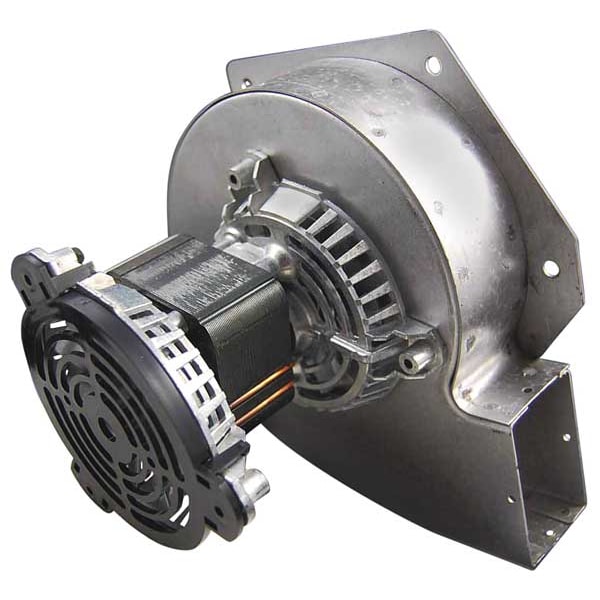

Induced Draft Furnace Blower, 115, Metal Housing, 11 1/4 in W, 7 in H
| Item | Induced Draft Furnace Blower |
|---|---|
| Voltage | 115 V |
| Depth (In.) | 11-1/4 |
| Construction Material | Metal Housing |
| Amps | 1.2 |
| Includes | Special Plug |
| Remarks | Product Used as Direct OEM Replacement Only. Any Other use Constitutes a Misapplication, Which Voids the Warranty and May Create Unsafe Conditions |
| Height (In.) | 7 |
| For Use With Mfr. Model Number | BLW473 |
| Fits Brand | Trane |
| Replaces | Trane BLW473 |
| Agency Compliance | UL Recognized and CSA Certified |
| Width (In.) | 11-1/4 |
| Application | Furnaces |
| CFM @ 0.000-In. SP | 161.9 |
| Includes Motor | Yes |
| Motor Insulation Class | B |
| Replacement For Manufacturer Model Number | 10708, 210330673, 210340125, 3124, 4MH34, 70022558, 7021-10281, 7021-10291, 7021-8013, 7021-8428, 7021-8924, 7021-9055, 7021-9913, 702110281, 70218013, 70218428, 70218924, 70219055, 70219913, 7058-1725, 7158-1445, 787P01, 82233, 944, BLW473, D330787P01, D330809P01, FB-RFB337, J238-1344, J238-138, J238-138-1344, N143, R7-RFB143, X38040305010, X38040305017 |
| Overall Width | 11-1/4 in |
| Nameplate Voltage | 120V AC |
| OEM Replacement | Yes |
| Frequency | 60 Hz |
| Overall Depth | 11-1/4 in |
| Maximum Motor Speed | 3,100 rpm |
| For Appliance Type | Furnaces |
| Maximum Inlet Air Temperature | 40 deg C |
| Standards | UL Listed, CSA Certified |
| Phase | 1 |
| Overall Height | 7 in |
| Current | 1.3 A |
| For Use With | BLW473, Trane |
| Compatible with Brand | AllTemp, Emerson, Fasco, Jakel, Mars, Nidec, Packard, Rotom, Trane, Universal, US Motors |
| Housing Material | Metal |
| Maximum Static Pressure | 0.125 in wc |
| Maximum Motor Horsepower | 1/30 hp |
| For Fuel Type | Natural Gas |
| Motor Type | Shaded Pole |
| Blower Type | Induced Draft Furnace Blower |
| Country of Origin (subject to change) | Taiwan, Province of China |
| Package Quantity | 1 |
