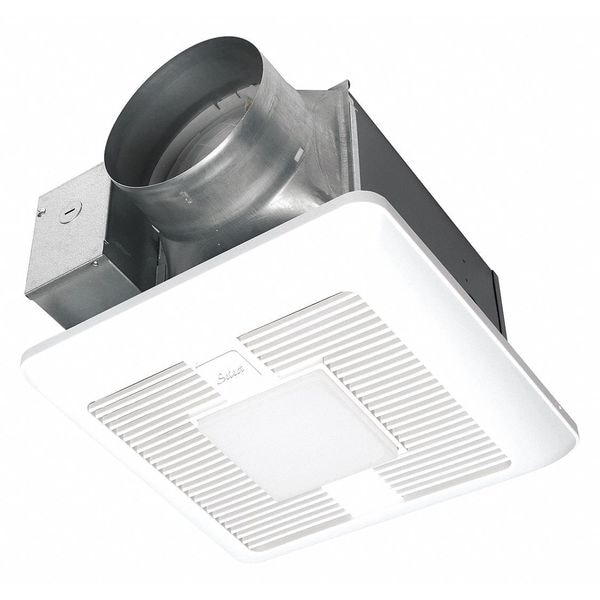

Bathroom Fan, 110/130/150 cfm cfm, 6 in Duct Dia., 120V AC, With Light
| Promotion Restriction | Not eligible for promotion |
|---|---|
| Voltage | 120V AC |
| CFM @ 0.100-In. SP | 110/130/150 cfm |
| Includes | Motion Sensor Cap |
| Phase | 1 |
| Watts | 7.5/10.4/14.9 W |
| Duct Dia. | 6 in |
| Amps | 0.08/0.11/0.15 |
| Housing Material | Zinc; Aluminum; Magnesium |
| Number of Speeds | 3 |
| Sones @ 0.100-In. SP @ 5 Ft. | 0.3/0.3/0.4 |
| Lighted | With Light |
| Heater | Without Heater |
| Motion Sensing | No |
| Profile | Medium |
| Hz | 60 |
| Housing Height | 7-3/8 in |
| Grille Length | 13 in |
| Humidity Sensing | No |
| Grille Width | 13 in |
| Nominal RPM | 648/682/722 RPM |
| Requires | Ductwork |
| Housing Width | 10-1/4 in |
| Motor Type | DC Motor |
| Item | Bathroom Fan |
| Standards | ASHRAE 62.2, CA T-24, CALGreen, LEED, UL Listed |
| Grille Material | Polypropylene |
| Housing Length | 10-1/4 in |
| Green Certification or Other Recognition | ENERGY STAR Certified |
| Discharge | Vertical |
| Night-Light | Yes |
| Noise Level @ 0.250 in SP @ 5 ft | 0.8 sones |
| Primary Lighting Technology | LED |
| Maximum Noise Level | 0.8 sones |
| Exhaust Airflow @ 0.100 in SP | 150 cfm |
| For Cut-Out Length | 10-1/2 in |
| Sensor Type | Occupancy |
| Nameplate Voltage | 120 V AC |
| Duct Shape | Round |
| Overall Width | 10-1/4 in |
| Mounting Orientation | Horizontal |
| Includes Grill | Yes |
| Vent Design | Ducted |
| Profile Width Family | Single-Wide |
| Overall Height | 7-3/8 in |
| Light Color Temperature | Warm White |
| Overall Depth | 10-1/4 in |
| Night Light Wattage | 0.2 W |
| Profile Height Family | Medium |
| Motor Speed | 648 RPM, 682 RPM, 722 RPM, 916 RPM, 932 RPM, 951 RPM, 1,105 RPM, 1,108 RPM, 1,113 RPM |
| Discharge Direction | Vertical |
| Night Light Technology | LED |
| Duct Diameter | 6 in |
| Blower Wheel Curve | Forward |
| Exhaust Airflow @ 0.250 in SP | 110 cfm, 130 cfm, 150 cfm |
| Primary Light Wattage | 10 W |
| Full Load Current | 0.08 A, 0.11 A, 0.15 A |
| Noise Level @ 0.100 in SP @ 5 ft | 0.4 sones |
| Frequency | 60 Hz |
| Maximum Ambient Operating Temperature | 104 Degrees F |
| Includes Light Bulbs | Yes |
| For Cut-Out Width | 10-1/2 in |
| Number of Primary Lights | 1 |
| Country of Origin (subject to change) | Mexico |
| Package Quantity | 1 |
