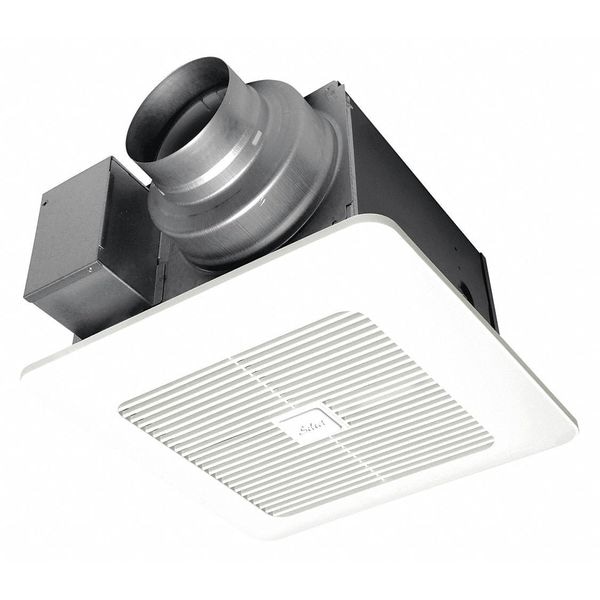

Bathroom Fan, 50/80/110 cfm cfm, 4 in or 6 in Duct Dia., 120V AC, Without Light
| Promotion Restriction | Not eligible for promotion |
|---|---|
| Voltage | 120V AC |
| CFM @ 0.100-In. SP | 50/80/110 cfm |
| Includes | Motion Sensor Cap |
| Phase | 1 |
| Watts | 3.1/5.1/9.9 W |
| Duct Dia. | 4 in, 6 in |
| Amps | 0.04/0.06/0.10 |
| Housing Material | Zinc; Aluminum; Magnesium |
| Number of Speeds | 3 |
| Sones @ 0.100-In. SP @ 5 Ft. | 0.3/0.3/0.3 |
| Lighted | Without Light |
| Heater | Without Heater |
| Motion Sensing | No |
| Profile | Medium |
| Motor Type | DC Motor |
| Hz | 60 |
| Green Certification or Other Recognition | ENERGY STAR Certified |
| Grille Length | 13 in |
| Housing Width | 10-1/4 in |
| Housing Height | 7-3/8 in |
| Grille Width | 13 in |
| Night-Light | No |
| Humidity Sensing | No |
| Requires | Ductwork |
| Grille Material | Polypropylene |
| Item | Bathroom Fan |
| Standards | ASHRAE 62.2, CA T-24, CALGreen, LEED, UL Listed |
| Discharge | Vertical |
| Nominal RPM | 722/795/1182 RPM |
| Housing Length | 10-1/4 in |
| Includes Light Bulbs | No |
| Frequency | 60 Hz |
| Duct Diameter | 4 in |
| Motor Speed | 760 RPM, 795 RPM, 839 RPM, 889 RPM, 920 RPM, 1,112 RPM, 1,113 RPM, 1,135 RPM, 1,164 RPM, 1,182 RPM, 1,315 RPM, 1,351 RPM, 1,356 RPM |
| Exhaust Airflow @ 0.250 in SP | 30 cfm, 41 cfm, 51 cfm, 60 cfm, 71 cfm, 80 cfm, 90 cfm, 101 cfm, 110 cfm |
| Overall Depth | 10-1/4 in |
| Noise Level @ 0.100 in SP @ 5 ft | 0.3 sones |
| Duct Shape | Round |
| Nameplate Voltage | 120 V AC |
| Overall Width | 10-1/4 in |
| Profile Width Family | Single-Wide |
| Mounting Orientation | Horizontal |
| Noise Level @ 0.250 in SP @ 5 ft | 0.8 sones |
| For Cut-Out Width | 10-1/2 in |
| Includes Grill | Yes |
| Sensor Type | Occupancy |
| Overall Height | 7-3/8 in |
| Vent Design | Ducted |
| Blower Wheel Curve | Forward |
| Exhaust Airflow @ 0.100 in SP | 110 cfm |
| Maximum Ambient Operating Temperature | 104 Degrees F |
| Profile Height Family | Medium |
| Maximum Noise Level | 0.8 sones |
| Discharge Direction | Vertical |
| For Cut-Out Length | 10-1/2 in |
| Full Load Current | 0.04 A, 0.05 A, 0.06 A, 0.07 A, 0.08 A, 0.09 A, 0.1 A, 0.11 A, 0.12 A, 0.13 A, 0.14 A, 0.16 A, 0.18 A, 0.2 A |
| Country of Origin (subject to change) | Mexico |
| Package Quantity | 1 |
