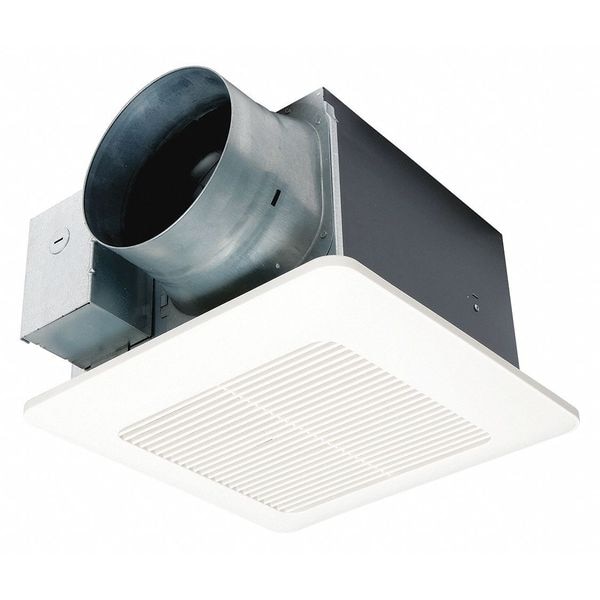

Ceiling Bathroom Fan, 110/130/150 cfm cfm, 6 in Duct Dia., 120V AC, Without Light
| Promotion Restriction | Not eligible for promotion |
|---|---|
| Voltage | 120V AC |
| Mounting Location | Ceiling |
| CFM @ 0.100-In. SP | 110/130/150 cfm |
| Phase | 1 |
| Watts | 6.8/9.0/11.8 W |
| Duct Dia. | 6 in |
| Amps | 0.12/0.16/0.19 |
| Housing Material | Zinc; Aluminum; Magnesium |
| Number of Speeds | 1 |
| Sones @ 0.100-In. SP @ 5 Ft. | 0.3/0.3/0.3 |
| Lighted | Without Light |
| Heater | Without Heater |
| Motion Sensing | No |
| Profile | Medium |
| Discharge | Vertical |
| Green Environmental Attribute | Product Contributes To Reducing Energy Consumption |
| Night-Light | No |
| Grille Length | 13 in |
| Standards | cUL Listed, ENERGY STAR, HVI Certified, UL Listed |
| Item | Bathroom Fan |
| Grille Material | Polypropylene |
| Housing Width | 10-1/4 in |
| Grille Width | 13 in |
| Green Certification or Other Recognition | ENERGY STAR |
| Height (In.) | 7-1/2 |
| Requires | Ductwork |
| Nominal RPM | 636/671/698 RPM |
| Housing Length | 10-1/4 in |
| Width (In.) | 10-1/4 |
| Hz | 60 |
| Housing Height | 7-1/2 in |
| Humidity Sensing | No |
| Motor Type | DC Motor |
| Motor Enclosure | Enclosed |
| For Cut-Out Length | 10-1/2 in |
| Maximum Ambient Operating Temperature | 104 Degrees F |
| Exhaust Airflow @ 0.100 in SP | 150 cfm |
| Frequency | 60 Hz |
| Blower Wheel Curve | Forward |
| Duct Shape | Round |
| Maximum Noise Level | 0.7 sones |
| Profile Width Family | Single-Wide |
| Discharge Direction | Vertical |
| Noise Level @ 0.100 in SP @ 5 ft | 0.3 sones |
| Mounting Orientation | Vertical |
| Sensor Type | None |
| Overall Height | 7-3/8 in |
| For Cut-Out Width | 10-1/2 in |
| Full Load Current | 0.12 A, 0.16 A, 0.19 A, 0.2 A, 0.25 A, 0.31 A |
| Overall Width | 10-1/4 in |
| Includes Grill | Yes |
| Overall Depth | 10-1/4 in |
| Nameplate Voltage | 120 V AC |
| Exhaust Airflow @ 0.250 in SP | 110 cfm, 131 cfm, 152 cfm |
| Motor Speed | 768 RPM, 867 RPM, 1,016 RPM, 1,097 RPM, 1,185 RPM, 1,268 RPM, 1,342 RPM, 1,480 RPM |
| Vent Design | Ducted |
| Duct Diameter | 6 in |
| Includes Light Bulbs | No |
| Profile Height Family | Medium |
| Noise Level @ 0.250 in SP @ 5 ft | 0.7 sones |
| Country of Origin (subject to change) | Mexico |
| Package Quantity | 1 |
