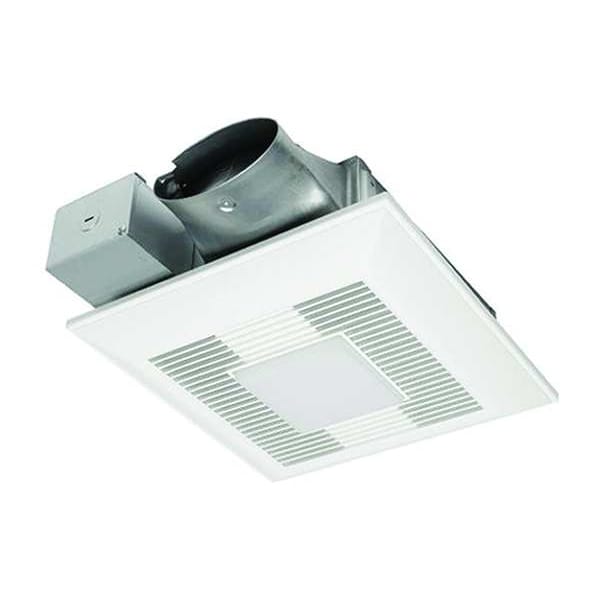

Ceiling or Wall Bathroom Fan, 50/80/110 cfm cfm, 4 in Duct Dia., 120V AC, With Light
| Promotion Restriction | Not eligible for promotion |
|---|---|
| Voltage | 120V AC |
| Mounting Location | Ceiling, Wall |
| CFM @ 0.100-In. SP | 50/80/110 cfm |
| Includes | Light |
| Phase | 1 |
| Watts | 4.5/8.5/12.4 W |
| Duct Dia. | 4 in |
| Amps | 0.08/0.13/0.18 |
| Housing Material | Steel |
| Number of Speeds | 3 |
| Sones @ 0.100-In. SP @ 5 Ft. | 0.9 |
| Lighted | With Light |
| Heater | Without Heater |
| Motion Sensing | No |
| Profile | Low |
| Discharge | Horizontal, Vertical |
| Construction Material | Metal |
| Green Certification or Other Recognition | ENERGY STAR |
| Grille Length | 13 in |
| Grille Material | Polypropylene |
| Standards | ASHRAE 62.2, California Title 24, ENERGY STAR, LEED, UL Listed, Washington VIAQ |
| Housing Width | 10-1/4 in |
| Item | Bathroom Fan |
| Nominal RPM | 733/856/954 RPM |
| Height (In.) | 4-13/16 |
| Green Environmental Attribute | Product Contributes To Reducing Energy Consumption |
| Housing Length | 10-1/4 in |
| Night-Light | Yes |
| Humidity Sensing | No |
| Width (In.) | 13 |
| Housing Height | 3-3/8 in |
| Grille Width | 13 in |
| Hz | 60 |
| Motor Type | Electronically Commutated |
| Motor Enclosure | Enclosed |
| Exhaust Airflow @ 0.100 in SP | 110 cfm |
| Night Light Technology | LED |
| Night Light Wattage | 0.2 W |
| Includes Light Bulbs | Yes |
| Light Color Temperature | Warm White |
| Noise Level @ 0.100 in SP @ 5 ft | 0.9 sones |
| Sensor Type | None |
| Full Load Current | 0.08 A, 0.13 A, 0.18 A |
| Noise Level @ 0.250 in SP @ 5 ft | 1.3 sones |
| Primary Light Wattage | 10 W |
| Overall Depth | 10-1/4 in |
| Duct Diameter | 4 in |
| Discharge Direction | Horizontal, Vertical |
| For Cut-Out Length | 10-1/2 in |
| Includes Grill | Yes |
| For Cut-Out Width | 10-1/2 in |
| Motor Speed | 733 RPM, 856 RPM, 954 RPM, 1,050 RPM, 1,114 RPM, 1,176 RPM, 1,230 RPM, 1,270 RPM, 1,300 RPM |
| Overall Width | 10-1/4 in |
| Number of Primary Lights | 1 |
| Primary Lighting Technology | LED |
| Maximum Noise Level | 1.3 sones |
| Profile Height Family | Low |
| Nameplate Voltage | 120 V AC |
| Vent Design | Ducted |
| Overall Height | 3-3/8 in |
| Frequency | 60 Hz |
| Profile Width Family | Single-Wide |
| Duct Shape | Oval |
| Exhaust Airflow @ 0.250 in SP | 52 cfm, 81 cfm, 101 cfm |
| Country of Origin (subject to change) | Mexico |
| Package Quantity | 1 |
