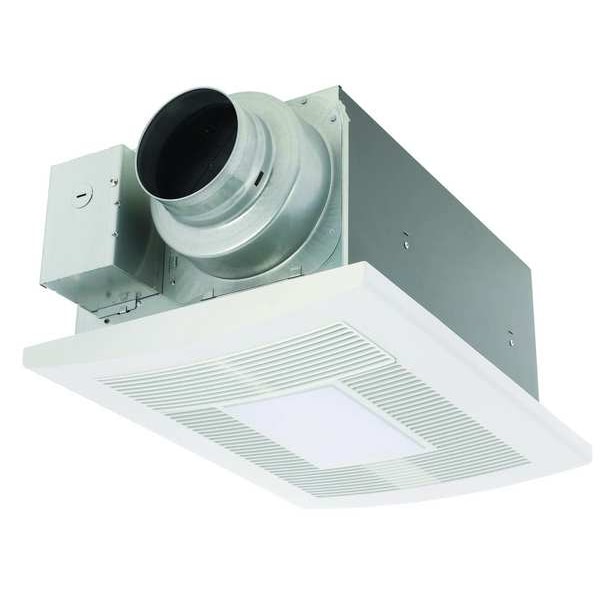

Fan/Heater Combination, 50/80/110CFM cfm, 4 or 6 in Duct Dia., 120V AC, With Light
| Promotion Restriction | Not eligible for promotion |
|---|---|
| Voltage | 120V AC |
| CFM @ 0.100-In. SP | 50/80/110CFM |
| Includes | Mounting Brackets |
| Phase | 1 |
| Watts | 4.7/7.4/12.4 |
| Duct Dia. | 4 or 6 in |
| Amps | 0.1/0.15/0.25 |
| Housing Material | Zinc; Aluminum; Magnesium |
| Number of Speeds | 3 |
| Sones @ 0.100-In. SP @ 5 Ft. | Less Than0.3/ Less Than0.3/0.7 |
| Lighted | With Light |
| Heater | With Heater |
| Motion Sensing | No |
| Profile | Medium |
| Housing Width | 10-1/4 in |
| Grille Width | 18-1/2 in |
| Motor Type | Electronically Commutated |
| Motor Enclosure | Enclosed |
| Humidity Sensing | No |
| Nominal RPM | 654/745/885 RPM |
| Housing Length | 16 in |
| Standards | cUL Listed, HVI Certified |
| Night-Light | Yes |
| Requires | Minimum 20 Amp Dedicated Circuit |
| Grille Length | 13-1/2 in |
| Discharge | Vertical |
| Item | Fan/Heater Combination |
| Hz | 60 |
| Heat Watts | 1,600 |
| Housing Height | 7-1/2 in |
| Grille Material | Polypropylene |
| Maximum Noise Level | 1.5 sones |
| Primary Light Wattage | 10 W |
| Light Color Temperature | Warm White |
| Includes Grill | Yes |
| Exhaust Airflow @ 0.100 in SP | 110 cfm |
| For Cut-Out Width | 10-1/4 in |
| Profile Width Family | Single-Wide |
| Overall Width | 16 in |
| Heater Wattage | 1,600 W |
| Primary Lighting Technology | LED |
| Nameplate Voltage | 120 V AC |
| Night Light Wattage | 0.2 W |
| Night Light Technology | LED |
| Noise Level @ 0.100 in SP @ 5 ft | 0.7 sones |
| Vent Design | Ducted |
| Overall Height | 7-1/2 in |
| Discharge Direction | Vertical |
| Profile Height Family | Low |
| Overall Depth | 10-1/4 in |
| Heater Type | Heating Coil |
| Includes Light Bulbs | Yes |
| Frequency | 60 Hz |
| Noise Level @ 0.250 in SP @ 5 ft | 1.5 sones |
| Exhaust Airflow @ 0.250 in SP | 52 cfm, 81 cfm, 111 cfm |
| Number of Primary Lights | 1 |
| For Cut-Out Length | 16 in |
| Motor Speed | 654 RPM, 745 RPM, 885 RPM, 1,130 RPM, 1,194 RPM, 1,265 RPM |
| Duct Shape | Round |
| Blower Wheel Curve | Forward |
| Full Load Current | 0.1 A, 0.15 A, 0.18 A, 0.25 A, 0.26 A, 0.27 A, 0.37 A, 0.39 A, 0.48 A, 0.5 A |
| Sensor Type | None |
| Duct Diameter | 4 in |
| Country of Origin (subject to change) | Mexico |
| Package Quantity | 1 |
