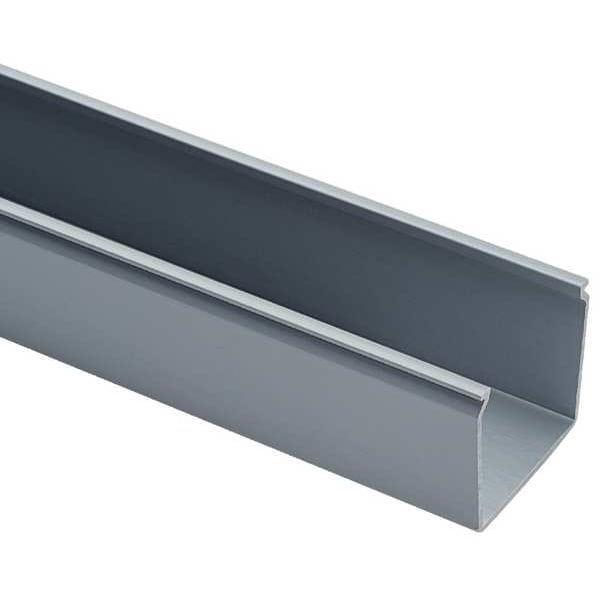

Base Raceway, FS2 Series, 1 Channel, 2-1/4 in W, 3.14 in H, 6 ft L, Gray
| Item | Raceway |
|---|---|
| Type | Base |
| Series | FS2 |
| Number of Channels | 1 |
| Width | 2-1/4 in |
| Height | 3.14 in |
| Length | 6 ft |
| Material | PVC |
| Color | Gray |
| Cover Type | Not Included |
| Standards | CE Compliant, CSA Certified, NFPA 79-2015 Section 13.3.1, RU Certified, UL 94V-0 |
| Finish | Decor |
| Includes | Base Only |
| Mounting Style | Screw Mount |
| Nominal Height | 3 in |
| Nominal Width | 2 in |
| Compatible Cover Style | Snap-On |
| Slot Width | 0.2 in |
| Wall Type | Solid |
| Flammability Rating | UL94 V-0 |
| Wiring Duct Style | Solid Wall Wiring Duct |
| Product Type | Base Wiring Duct |
| Wiring Duct Type | FS |
| Application | Solid wall design fully encloses cables providing maximum protection and aesthetics |
| Mount Method | No Mounting Holes |
| Measurement System | Imperial |
| Product Name | 6ft Panduct Type FS - Solid Wall Raceway |
| Product Line | Panduct |
| Certifications & Standards | RoHS |
| Product Material | Polyvinyl Chloride |
| Product Color | Gray |
| Additional Information | Thickness: 0.10 inch |
| Standards Met | RoHS Compliant, UL Recognized, CE Compliant, CSA Approved |
| Sub Brand | Panduct® |
| Slot-to-Slot Centerline | 1/2 in |
| Package Quantity | 1 |
