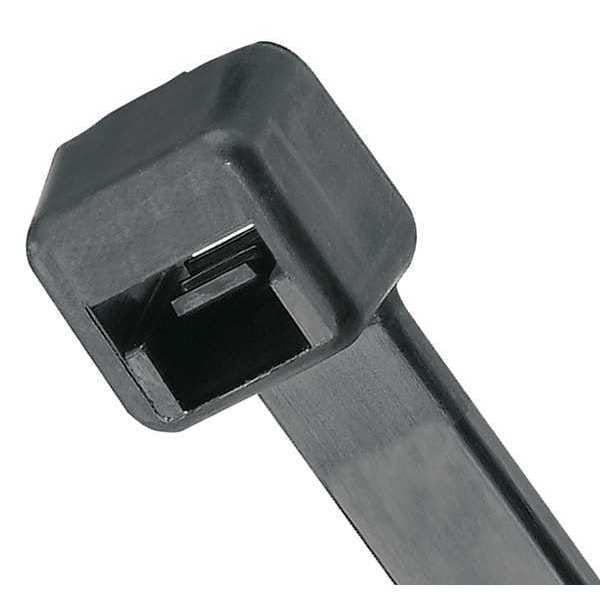

Cable Tie, 14-1/2 in L, 4 in Max Bundle Dia., Black, Nylon 6/6, 40 lb Strength, 1000 PK
| Item | Cable Tie |
|---|---|
| Cable Tie Style | Halogen-Free, Low-Smoke, Plenum Rated, UV Resistant |
| Nominal Length | 14-1/2 in |
| Width | 9/64 in |
| Nominal Max. Bundle Dia. | 4 in |
| Color | Black |
| Material | Nylon 6/6 |
| Tensile Strength | 40 lb |
| Outdoor Use | Yes |
| Locking Style | Plastic Pawl |
| UL Type | 21, 2 |
| Tool Code | E |
| Standards | UL 62275 (Type 2, 21), CSA, CE, RoHS |
| Thickness | 0.05 in |
| Metal Detectable | No |
| Operating Temp. Range | -76 to 185 deg F |
| Plenum Rated | Yes |
| Number of Straps | 1 |
| Recommended Tool | 376V35, 52ZJ96, Mfr. No. PTS |
| Min. Temp. Rating | -76 deg F |
| Cable Tie Properties | Halogen-Free, Low-Smoke, Plenum Rated |
| Actual Length | 14-1/2 in |
| Max. Temp. Rating | 185 deg F |
| For Use With | GTS-E, GS2B-E, PTS, PPTS, STS2 |
| Environmentally Friendly | Yes |
| Product Line | Pan-Ty |
| Minimum Loop Tensile Strength (N) | 178 |
| Body Thickness (mm) | 1.3 |
| Minimum Installation Temperature (°F) | -4 |
| Maximum Bundle Diameter (In.) | 4 |
| Body Thickness (In.) | 0.052 |
| Minimum Installation Temperature (°C) | -20 |
| Minimum Loop Tensile Strength (lb) | 40 |
| Maximum Bundle Diameter (mm) | 102 |
| Minimum Installation Temperature (°C) | -20 |
| Minimum Installation Temperature (°F) | -4 |
| Max. Bundle Dia. | 4 in |
| Temp. Range | -76 to 185 deg F |
| Cable Tie Duty | Intermediate |
| Flame Retardant | No |
| Basic Material - Cable Tie | Nylon |
| Package Quantity | 1000 |
