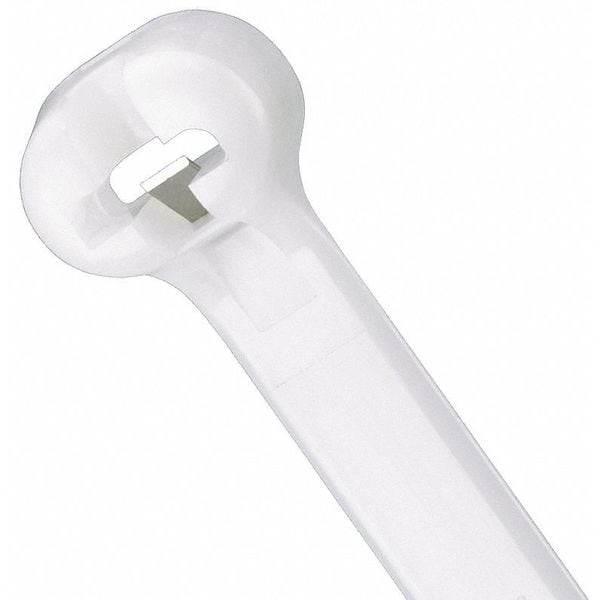

Cable Tie, 15 in L, 4 in Max Bundle Dia., Natural, Nylon 6/6, 120 lb Strength, 250 PK
| Item | Cable Tie |
|---|---|
| Cable Tie Style | Halogen-Free, Low-Smoke, Plenum Rated |
| Nominal Length | 15 in |
| Width | 0.27 in |
| Nominal Max. Bundle Dia. | 4 in |
| Color | Natural |
| Material | Nylon 6/6 |
| Tensile Strength | 120 lb |
| Outdoor Use | No |
| Standards | UL 62275 (Type 2, 21), CSA, CE, RoHS, Plenum AH-2 |
| Locking Style | Stainless Steel Barb |
| Metal Detectable | No |
| Tool Code | F |
| Thickness | 0.06 in |
| UL Type | 2 |
| Operating Temp. Range | -76 to 185 deg F |
| Recommended Tool | 52ZJ97, 62PX61, Mfr. No. GS4EH-E, Mfr. No. GS4H-E, Mfr. No. STH2, Mfr. No. STHV |
| Number of Straps | 1 |
| Cable Tie Properties | Halogen-Free, Low-Smoke, Plenum Rated |
| Min. Temp. Rating | -76 deg F |
| Plenum Rated | Yes |
| Actual Length | 14.9 in |
| Max. Temp. Rating | 185 deg F |
| For Use With | GTH-E, GS4H-E, GS4EH-E, PTH, STH2, ST3EH |
| Product Line | Dome-Top |
| Environmentally Friendly | Yes |
| Minimum Installation Temperature (°C) | -20 |
| Body Thickness (mm) | 1.7 |
| Sub Brand | Dome-Top® |
| Maximum Bundle Diameter (In.) | 4 |
| Minimum Installation Temperature (°F) | -4 |
| Minimum Loop Tensile Strength (N) | 534 |
| Minimum Loop Tensile Strength (lb) | 120 |
| Maximum Bundle Diameter (mm) | 102 |
| Body Thickness (In.) | 0.065 |
| Cable Tie Duty | Heavy Duty |
| Flame Retardant | No |
| Max. Bundle Dia. | 4 in |
| Basic Material - Cable Tie | Nylon |
| Temp. Range | -76 to 185 deg F |
| Package Quantity | 250 |
