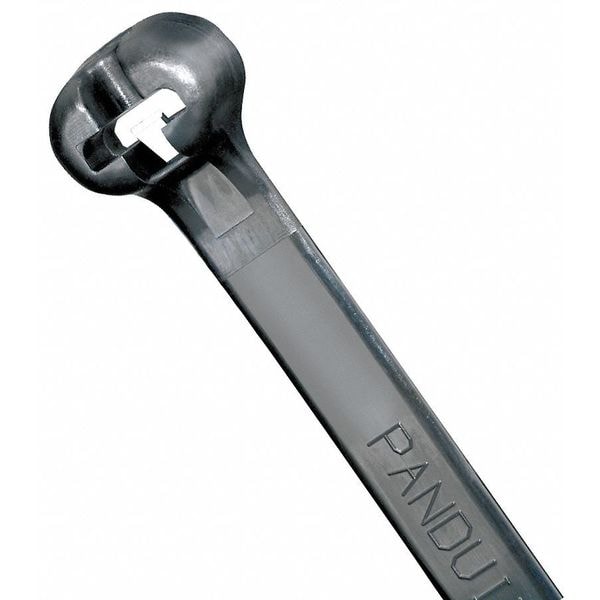

Cable Tie, 27-1/2 in L, 8 in Max Bundle Dia., Black, Nylon 6/6, 120 lb Strength, 50 PK
| Item | Cable Tie |
|---|---|
| Cable Tie Style | Halogen-Free, Low-Smoke, Plenum Rated, UV Resistant |
| Nominal Length | 27-1/2 in |
| Width | 0.27 in |
| Nominal Max. Bundle Dia. | 8 in |
| Color | Black |
| Material | Nylon 6/6 |
| Tensile Strength | 120 lb |
| Outdoor Use | Yes |
| UL Type | Not Listed |
| Metal Detectable | No |
| Standards | CE, RoHs |
| Thickness | 0.06 in |
| Locking Style | Stainless Steel Barb |
| Tool Code | F |
| Operating Temp. Range | -76 to 185 deg F |
| Max. Temp. Rating | 185 deg F |
| Cable Tie Properties | Halogen-Free, Low-Smoke, UV Light Resistant, Weather Resistant |
| Actual Length | 27-1/2 in |
| Recommended Tool | 62NP16, 62PX61, Mfr. No. GS4H, Mfr. No. GTH, Mfr. No. PTH, Mfr. No. STH2 |
| Plenum Rated | Yes |
| Number of Straps | 1 |
| Min. Temp. Rating | -76 deg F |
| Depth | 27-1/2 in |
| Product Line | Dome-Top Barb Ty |
| Additional Information | Cross Section: Light-Heavy (Straight Tip)Packaging: Std Pkg Qty: 50 |
| Minimum Installation Temperature (°F) | -4 |
| Minimum Installation Temperature (°C) | -20 |
| Maximum Bundle Diameter (mm) | 203.2 |
| Minimum Loop Tensile Strength (lb) | 120 |
| Body Thickness (In.) | 0.065 |
| Minimum Loop Tensile Strength (N) | 534 |
| Maximum Bundle Diameter (In.) | 8 |
| Sub Brand | Dome-Top® |
| For Use With | GTH-E, GS4H-E, GS4EH-E, PTH, STH2, ST3EH |
| Body Thickness (mm) | 1.7 |
| Minimum Installation Temperature (°C) | -20 |
| Minimum Installation Temperature (°F) | -4 |
| Temp. Range | -76 to 185 deg F |
| Basic Material - Cable Tie | Nylon |
| Cable Tie Duty | Heavy Duty |
| Flame Retardant | No |
| Max. Bundle Dia. | 8 in |
| Package Quantity | 50 |
