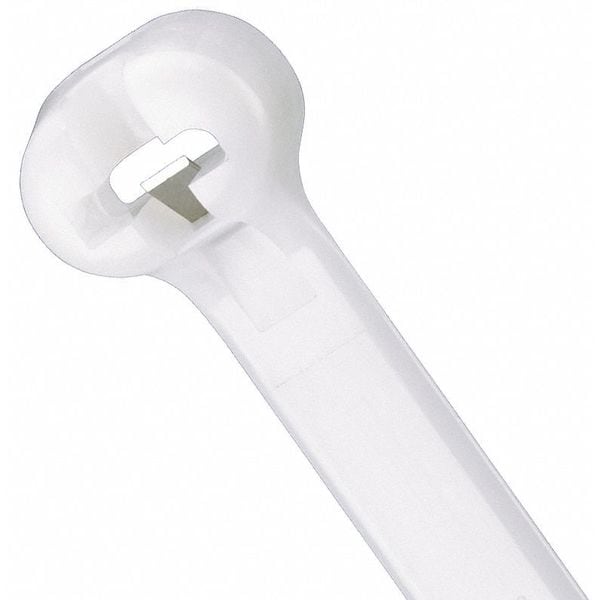

Cable Tie, 6-1/2 in L, 1-1/2 in Max Bundle Dia., Natural, Nylon 6/6, 18 lb Strength, 1000 PK
| Item | Cable Tie |
|---|---|
| Cable Tie Style | Halogen-Free, Low-Smoke, Plenum Rated |
| Nominal Length | 6-1/2 in |
| Width | 3/32 in |
| Nominal Max. Bundle Dia. | 1-1/2 in |
| Color | Natural |
| Material | Nylon 6/6 |
| Tensile Strength | 18 lb |
| Outdoor Use | No |
| Locking Style | Stainless Steel Barb |
| UL Type | 2 |
| Tool Code | E |
| Standards | UL 62275 (Type 2, 21), CSA, CE, RoHS, Plenum AH-2 |
| Metal Detectable | No |
| Thickness | 0.04 in |
| Operating Temp. Range | -76 to 185 deg F |
| Cable Tie Properties | Halogen-Free, Low-Smoke, Plenum Rated |
| Max. Temp. Rating | 185 deg F |
| Recommended Tool | 376V35, 52ZJ96, 62PX63, Mfr. No. PTS |
| Actual Length | 6.3 in |
| Min. Temp. Rating | -76 deg F |
| Number of Straps | 1 |
| Plenum Rated | Yes |
| For Use With | GTS-E, GS2B-E, PTS, PPTS, STS2 |
| Environmentally Friendly | Yes |
| Product Line | Dome-Top |
| Body Thickness (In.) | 0.046 |
| Minimum Loop Tensile Strength (lb) | 18 |
| Minimum Loop Tensile Strength (N) | 80 |
| Minimum Installation Temperature (°C) | -20 |
| Sub Brand | Dome-Top® |
| Minimum Installation Temperature (°F) | -4 |
| Maximum Bundle Diameter (In.) | 1.5 |
| Maximum Bundle Diameter (mm) | 38 |
| Body Thickness (mm) | 1.2 |
| Basic Material - Cable Tie | Nylon |
| Temp. Range | -76 to 185 deg F |
| Flame Retardant | No |
| Cable Tie Duty | Miniature |
| Max. Bundle Dia. | 1-1/2 in |
| Package Quantity | 1000 |
