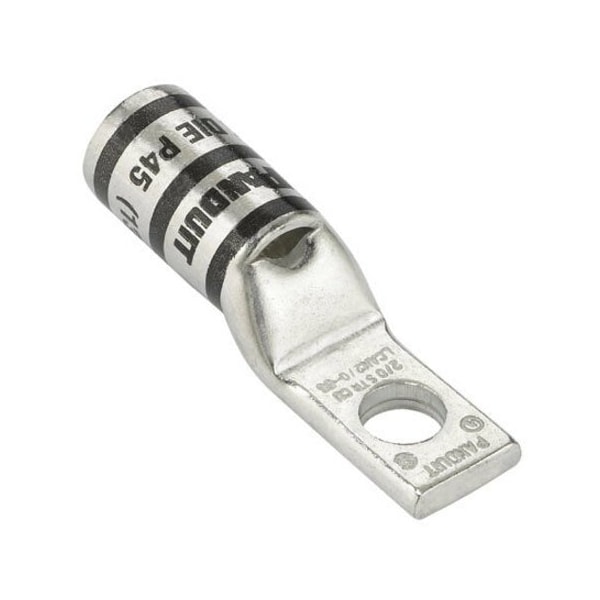

Terminal de compresión de cobre, 1 Orificio, 2/0 AWG, Lengüeta Estrecha, LCAN2/0-10-X.
| Length | 2.7 in |
|---|---|
| Color Code | Black |
| Overall Length | 1.86 in |
| Features | Corrosion Resistant, Angled Connector |
| Wire Strip Length (mm) | 27 |
| Tongue Width (In.) | 0.58 |
| Burndy Die Index Number | 13 |
| Tongue Type | Narrow |
| Tongue Thickness (mm) | 3.3 |
| Finish/Coating | Tin-Plated |
| Copper Code Conductor Size (AWG) | 36,557 |
| Barrel Length (In.) | 0.98 |
| Product Type | Copper Compression Connectors - Lugs |
| Stud Hole Size (In.) | 0.19 |
| Wire Strip Length (In.) | 1.06 |
| Barrel Length (mm) | 24.9 |
| Overall Length (In.) | 1.86 |
| UL Temperature Rating (°C) | 90 |
| Standards Met | C22.2 No. 65-13, 486A-486B File #E52164 |
| Tongue Angle | Straight |
| Overall Length (mm) | 46.7 |
| Base Material | Copper |
| Tongue Thickness (In.) | 0.15 |
| Panduit Die Index Number | P45 |
| Maximum Voltage (kV) | 35 |
| Tongue Width (mm) | 14.7 |
| Stud Hole Size (mm) | 4.8 |
| Barrel Type | Standard Barrel Length with Inspection Window |
| Connector Details | 1 x Terminal |
| Product Material | Copper |
| Product Name | Terminal Connector |
| Connector Plating | Tin |
| Product Class | Wire Termination |
| Package Quantity | 1 |
