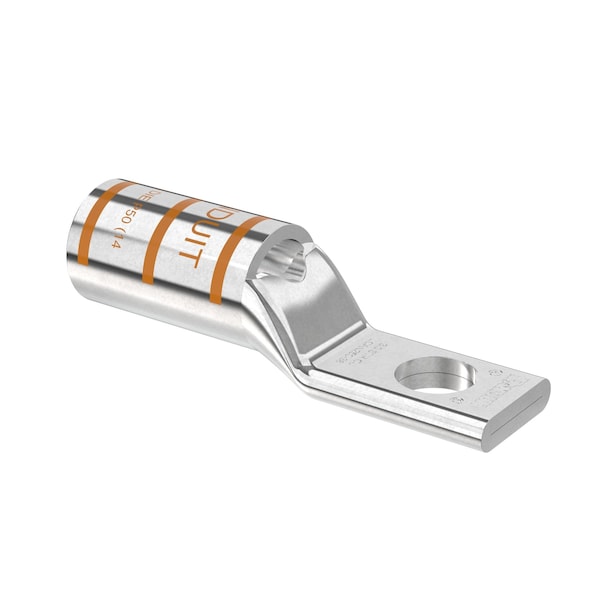

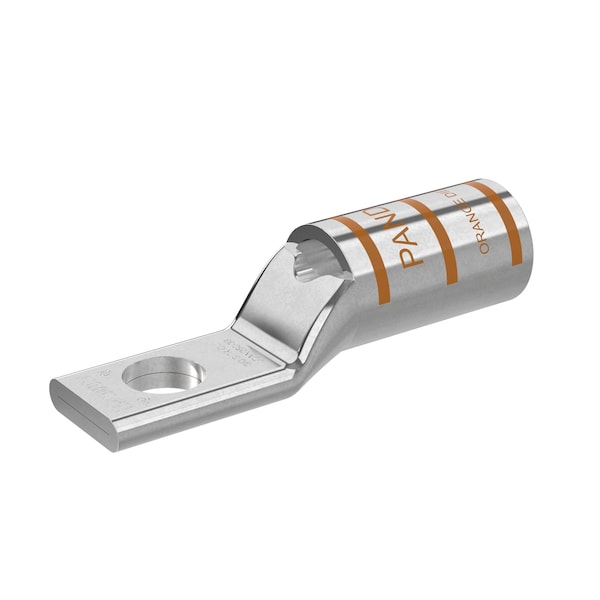

Copper Compression Lug, 1 Hole, 3/0 AWG, Narrow Tongue, LCAN3/0-38-X
| Length | 2.8 in |
|---|---|
| Color Code | Orange |
| Overall Length | 2.36 in |
| Features | Corrosion Resistant, Angled Connector |
| Burndy Die Index Number | 14 |
| Copper Code Conductor Size (AWG) | 36,586 |
| Stud Hole Size (mm) | 9.5 |
| Tongue Width (mm) | 16.3 |
| Tongue Type | Narrow |
| Finish/Coating | Tin-Plated |
| Inside Diameter (In.) | 0.51 |
| Wire Strip Length (mm) | 30.2 |
| Outer Diameter (In.) | 0.64 |
| Tongue Thickness (In.) | 0.16 |
| Barrel Length (In.) | 1.14 |
| Tongue Thickness (mm) | 4.1 |
| UL Temperature Rating (°C) | 90 |
| Product Type | Copper Compression Connectors - Lugs |
| Base Material | Copper |
| Stud Hole Size (In.) | 44,993 |
| T & B Die Index Number | 14 |
| Overall Length (mm) | 59.4 |
| Maximum Voltage (kV) | 35 |
| Outer Diameter (mm) | 16.25 |
| Wire Strip Length (In.) | 42,372 |
| Tongue Width (In.) | 0.64 |
| Panduit Die Index Number | P50 |
| Barrel Length (mm) | 29 |
| Lug Type | 1 Stud Hole Lug |
| Inside Diameter (mm) | 12.95 |
| Standards Met | C22.2 No. 65-13, 486A-486B File #E52165 |
| Overall Length (In.) | 2.36 |
| Tongue Angle | Straight |
| Barrel Type | Standard Barrel, Barrel with Inspection Window |
| Connector Details | 1 x Terminal |
| Product Material | Copper |
| Connector Plating | Tin |
| Product Name | Terminal Connector |
| Product Class | Wire Termination |
| Package Quantity | 1 |
