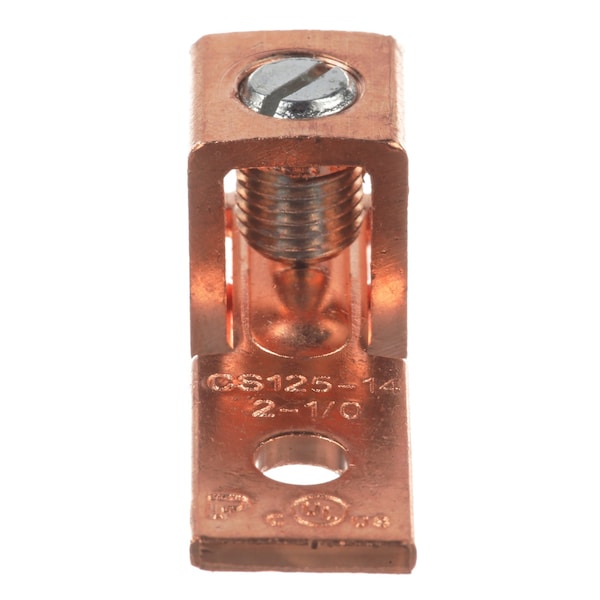

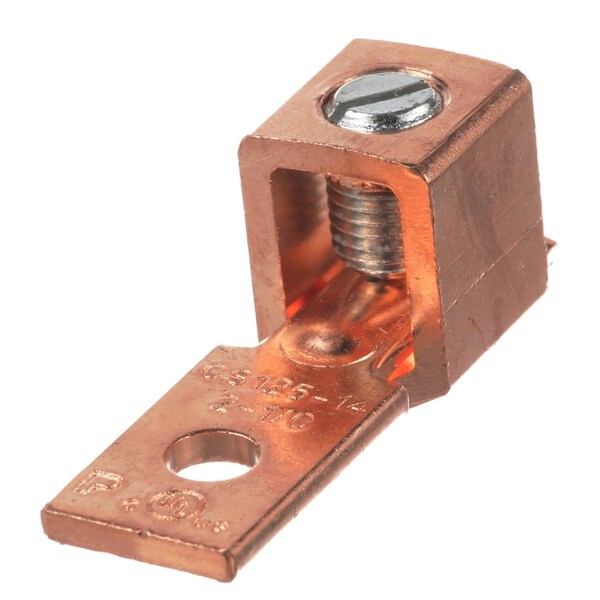

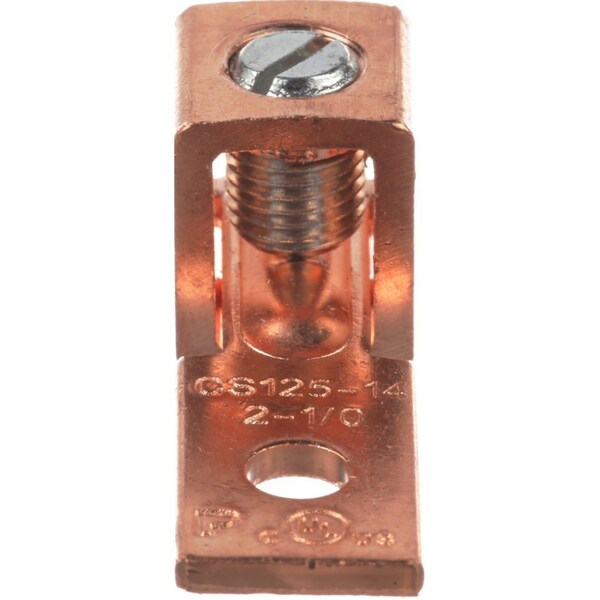

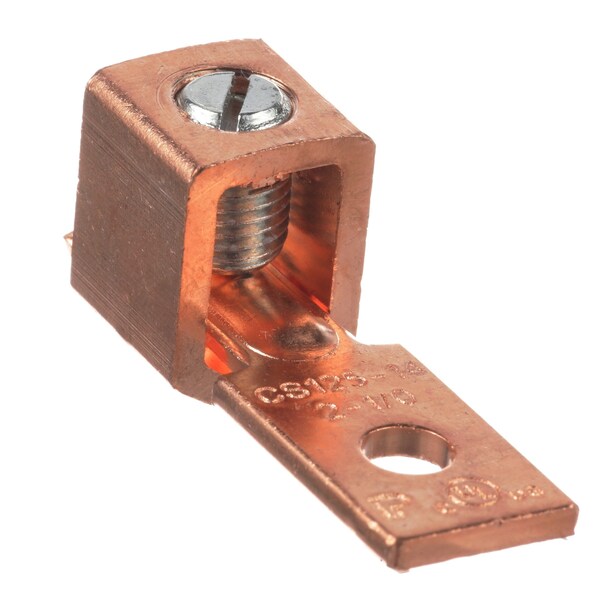

Terminal mecánica de cobre, 1 agujero, 1 barril, recta, acabado en flama, CS125-14SL-QY.
| Overall Length | 1.94 in |
|---|---|
| Height | 0.9 in |
| Maximum Voltage (V) | 600 |
| Tongue Type | Straight Tongue |
| Stud Hole Size (mm) | 6.35 |
| UL Temperature Rating (°C) | 90 |
| Overall Length (mm) | 49.3 |
| Minimum Copper Conductor Size (AWG STR) | 2 |
| Tongue Thickness (In.) | 0.11 |
| Product Type | Mechanical Connectors |
| Overall Height (In.) | 0.9 |
| Barrel Type | Single Barrel |
| Tongue Thickness (mm) | 2.8 |
| Number of Holes | 1 |
| Stud Hole Size (In.) | 44,930 |
| Base Material | Copper |
| Tongue Width (In.) | 0.62 |
| Overall Height (mm) | 22.4 |
| Tongue Width (mm) | 15.7 |
| Overall Length (In.) | 1.94 |
| Maximum Copper Conductor Size (AWG STR) | 36,526 |
| Standards Met | cULus Listed for use up to 600V & Temperature Rated to 90°C |
| Tongue Angle | Straight |
| Amperage (A) | 125 |
| Connector Details | 1 x Barrel Plug |
| Product Material | Copper |
| Product Name | Terminal Connector |
| Product Class | Wire Termination |
| Package Quantity | 1 |
