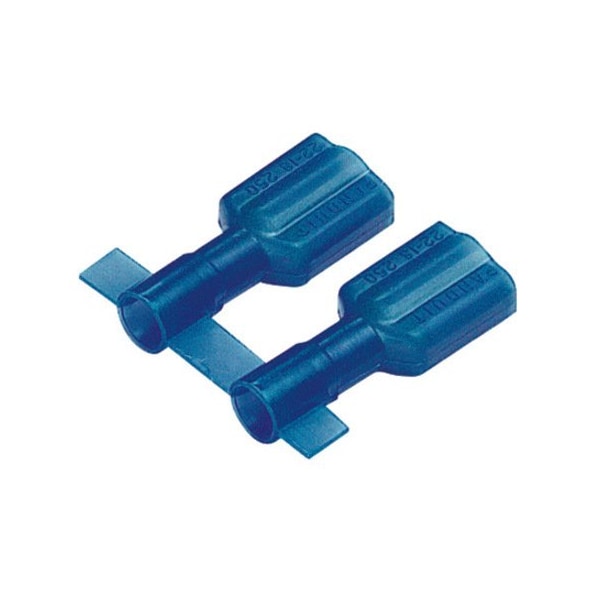

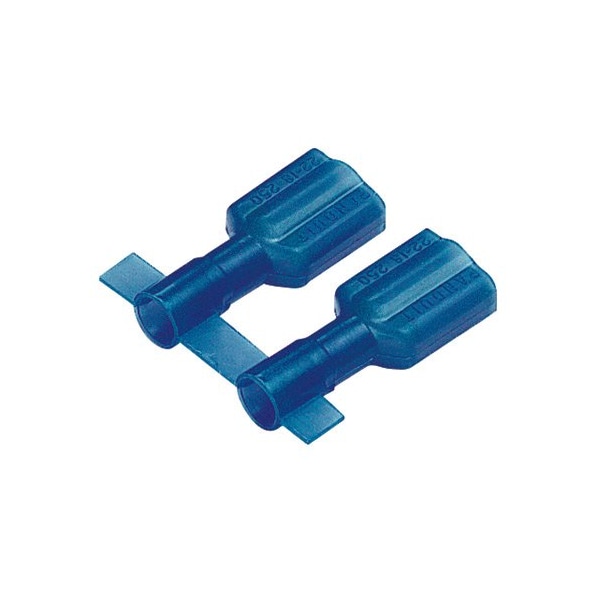

Desconexión hembra, totalmente aislada de nylon, 16-14, DNF14-188FIB-3K, paquete de 3000.
| For Use With | Crimp press with CA9 (CD9-5A) or CA-800EZ (CD-800-5) applicator |
|---|---|
| Color Code | Blue |
| Insulation Type | Fully Insulated |
| Overall Length | 0.78 in |
| Features | Flame Retardant, Molded |
| Height | 0.18 in |
| Finish | Tinned |
| Width | 0.3 in |
| Insulation Diameter (mm) | 4.1 |
| Minimum Wire Size (AWG) | #16 |
| Overall Width (In.) | 0.29 |
| Minimum Metric Conductor Size (mm²) | 1.5 |
| Maximum Voltage (V) | 600 |
| Maximum Operating Temperature (°F) | 221 |
| Maximum Metric Conductor Size (mm²) | 2.5 |
| Wire Strip Length (mm) | 7.1 |
| Base Material | Brass |
| Maximum Wire Insulation Diameter (mm) | 4.1 |
| Insulation Material | Nylon |
| Maximum Wire Size (AWG) | #14 |
| Maximum Copper Conductor Size (AWG) | #14 |
| Maximum Wire Insulation Diameter (In.) | 0.16 |
| Tab Size (mm) | 4.8 x 0.5 |
| Overall Length (In.) | 0.78 |
| Overall Length (mm) | 19.8 |
| Minimum Copper Conductor Size (AWG) | #16 |
| Disconnect Type | Female Disconnect |
| Tongue Angle | Straight |
| Tab Size (In.) | 0.187 x 0.02 |
| Wire Strip Length (In.) | 11,933 |
| Maximum Operating Temperature (°C) | 105 |
| Maximum Voltage (kV) | 0.6 |
| Finish/Coating | Tin-Plated |
| Flammability Rating | UL94-HB |
| Insulation Diameter (In.) | 0.16 |
| Overall Width (mm) | 7.4 |
| Seam Type | Butted |
| Product Type | Terminal Connector |
| Barrel Type | Funnel |
| Standards Met | UL 310 Listed, UL Listed 20H3 E78522; CSA Certified LR31212, C22.2 No.153 |
| Connector Details | 1 x (Quick Disconnect) |
| Product Color | Blue |
| Product Name | Terminal Connector |
| Contact Plating | Tin |
| Max Operating Temperature | 105 degrees celsius |
| Product Class | Wire Termination |
| Package Quantity | 3000 |
