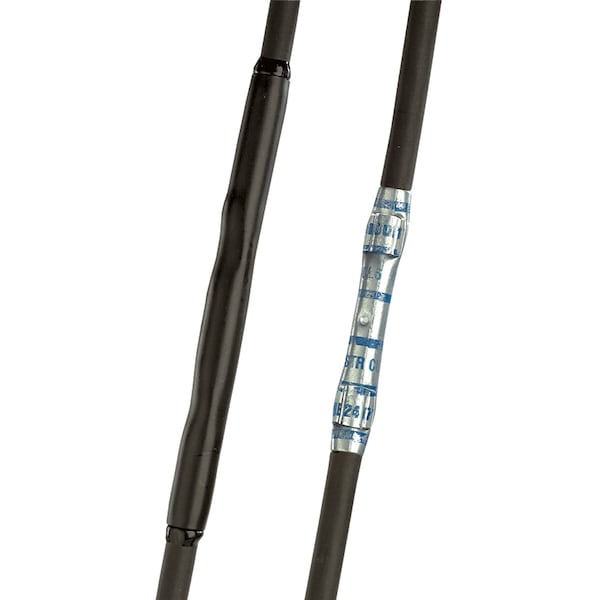

Heat Shrink Thin, Adhesive, .38"(9.5mm) Dia, Blk, HSTTA38-48-Q, PK 25
| Shrink Ratio | 0.1257 |
|---|---|
| Material | Adhesive Lined Cross-Linked Polyolefin |
| Color | Black |
| Length | 48 in |
| Overall Length | 1.219 m |
| Application | 3:1 shrink ratio for damp applications. Provides excellent abrasion protection and color coding. Flexible |
| Maximum Operating Temperature (°F) | 230 |
| Maximum Operating Temperature (°C) | 110 |
| Overall Length (mm) | 1.219 |
| Minimum Operating Temperature (°F) | -67 |
| Nominal Recovered Wall Thickness (mm) | 1.4 |
| Overall Length (ft.) | 4 |
| Nominal Diameter (mm) | 9.5 |
| Minimum Operating Temperature (°C) | -55 |
| Shrink Temperature (°C) | 120 |
| Minimum Expanded Inside Diameter (mm) | 9.5 |
| Product Type | Heat Shrink |
| Overall Length (In.) | 48 |
| Minimum Expanded Inside Diameter (In.) | 0.375 |
| Overall Length (m) | 1.2192 |
| Nominal Recovered Wall Thickness (In.) | 0.055 |
| Maximum Recovered Inside Diameter (In.) | 0.12 |
| Adhesive Lined | Yes |
| Shrink Temperature (°F) | 248 |
| Maximum Recovered Inside Diameter (mm) | 3 |
| Resistance Properties | Abrasion |
| Nominal Diameter (In.) | 0.375 |
| Product Name | Cable Protector Heat Shrink Tube |
| Product Material | Polyolefin |
| Product Color | Black |
| Cable Manager Type | Heat Shrink Tube |
| Product Class | Wire Routing, Management & Protection |
| Package Quantity | 25 |
