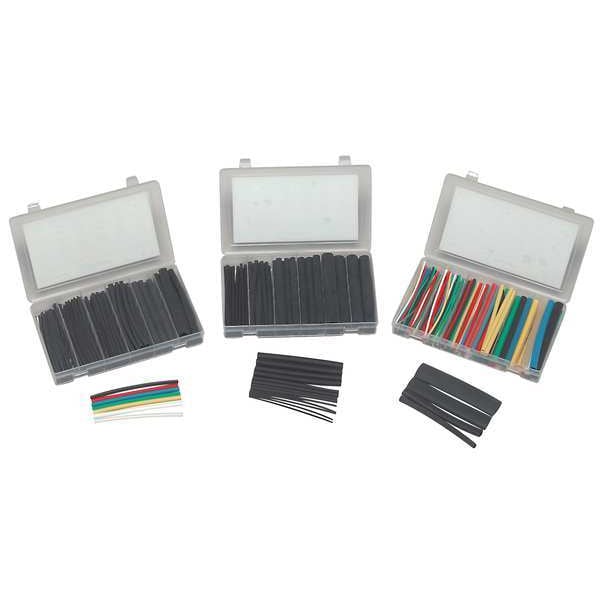

Heat Shrink Tube Kit, Dual Wall, Thin Wall, 2:1 I.D. Shrink Ratio, 6 in
| Item | Heat Shrink Tube Kit |
|---|---|
| Shrink Ratio | 2:1 |
| Wall Type | Thin Wall, Dual Wall |
| Shrink Tubing I.D. Before Shrinking | 1/2 in, 1/4 in, 1/8 in, 3/16 in, 3/32 in, 3/8 in |
| Material | Polyolefin |
| Color | Black, Blue, Clear, Green, Red, White, Yellow |
| Length | 6 in |
| Use with Wire Size | 0.09 in to 0.50 in |
| Temp. Range | -67° to 275°F |
| Min. Shrink Temp. | 194°F |
| Flame Retardant | No |
| Includes | (21) 1/4 in (3 ea color), (21) 3/16 in (3 ea color), (35) 1/8 in (5 ea color), (35) 3/32 in (5 ea color), (7) 1/2 in (1 ea color), (7) 3/8 in (1 ea color) |
| Number of Pieces | 126 |
| Standards | AMS-DTL-23053/5 Class 1 (Colors), Class 2 (Clear), CSA Certified, UL Recognized |
| Features | For Dry Locations |
| Max. Voltage | 600 |
| Tubing Wall Type | Thin Wall |
| Adhesive Lined | No |
| Kit Contents | Multiple Sizes |
| Package Style | Sticks |
| Dielectric Strength | 600 V |
| Application | Kit of Heat Shrink products for DRY locations. |
| I.D. Before Shrinking | 1/2 in, 1/4 in, 1/8 in, 3/16 in, 3/32 in, 3/8 in |
| Package Quantity | 1 |
