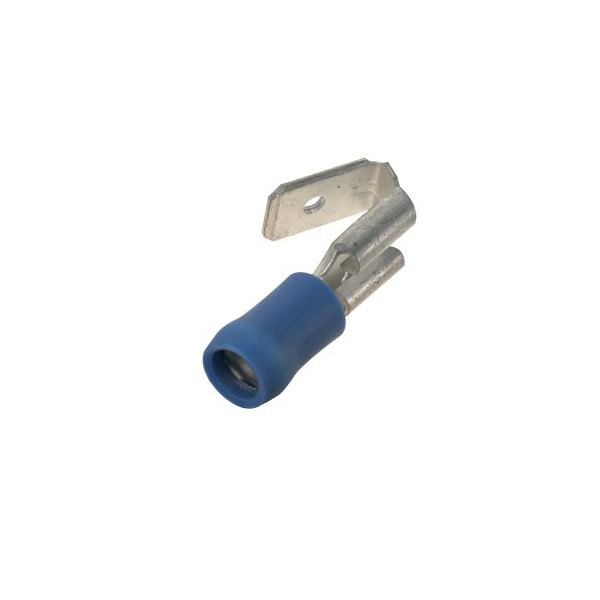

Piggyback Disconnect, Vinyl Barrel Insul (1000 Pack), 1000PK
| Wire Size | #14 |
|---|---|
| For Use With | CT-1550, CT-1551, CT-2300/ST (CD-550), CT-2500/L (CT-2550CH), UP14ZLW (CD-550) |
| Material | Brass |
| Insulation Type | Barrel Insulated |
| Tab Size | 0.250 x 0.032 |
| Overall Length | 0.88 in |
| Wire Strip Length | 11933 |
| Width | 0.29 in |
| Finish | Tinned |
| Overall Width | 0.29 |
| Overall Length (In.) | 0.88 |
| Minimum Metric Conductor Size (mm²) | 1.5 |
| Tab Size (mm) | 6.3 x 0.8 |
| Overall Width (In.) | 0.29 |
| Overall Length (mm) | 22.4 |
| Base Material | Brass |
| Maximum Copper Conductor Size (AWG) | #14 |
| Insulation Material | Vinyl |
| Wire Strip Length (In.) | 45,132 |
| Barrel Type | Funnel |
| Tongue Angle | Straight |
| Finish/Coating | Tin-Plated |
| Maximum Metric Conductor Size (mm²) | 2.5 |
| Minimum Copper Conductor Size (AWG) | #16 |
| Wire Strip Length (mm) | 7.1 |
| Disconnect Type | Piggy Back Disconnect |
| Overall Width (mm) | 7.4 |
| Maximum Wire Size (AWG) | #14 |
| Tab Size (In.) | 0.25 x 0.032 |
| Minimum Wire Size (AWG) | #16 |
| Maximum Wire Insulation Diameter (mm) | 4.1 |
| Product Type | Disconnect |
| Maximum Wire Insulation Diameter (In.) | 0.16 |
| Product Class | Wire Termination |
| Package Quantity | 1000 |
