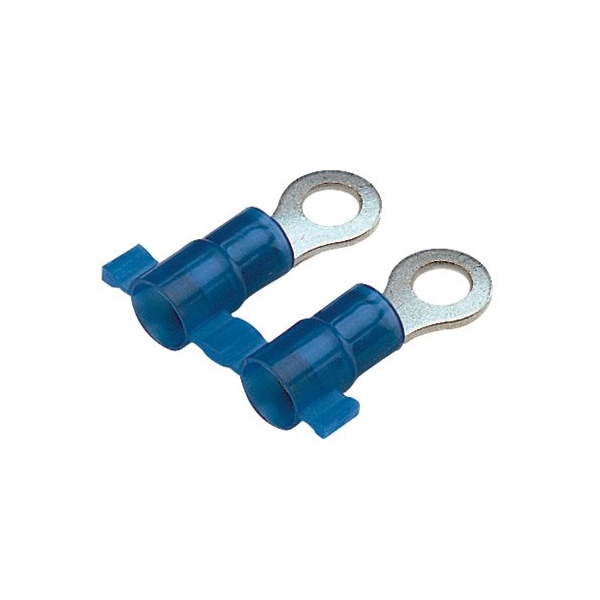

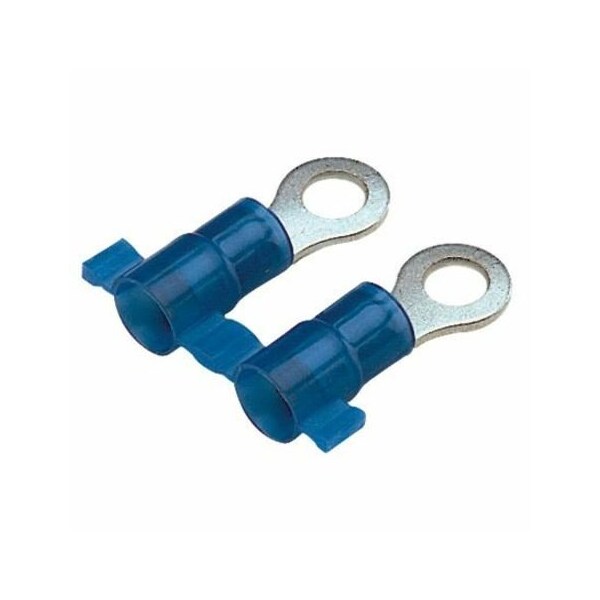

Terminal de anillo, aislamiento de nylon, calibre 16-14 AWG, perno de tamaño #10, PN14-10R-3K, paquete de 3000 unidades.
| Wire Range | 16 to 14 AWG |
|---|---|
| Insulation Type | Nylon |
| Stud Size | #10 |
| Insulation Color | Blue |
| Overall Length | 0.86 in |
| Features | Molded, Flame Retardant |
| Item | Ring Terminal |
| Max. Temp. | 221 deg F |
| Seam | Grip Sleeved |
| Terminal Type | Ring Tongue |
| Standards | cULus Listed 587H E52164, CSA Certified LR31212, Military QPL AS7928 (MS25036-108) |
| Max. Voltage | 600 V |
| Tongue Width - Wire Connector | 0.31 in |
| Connection Material | Copper |
| Width | 0.3 in |
| Length | 0.9 in |
| Finish | Tin-Plated |
| Insulation Dia | 0.16 in |
| Product Color | Blue |
| Material Details | Metal - Sleeve |
| Insulation Material | Nylon |
| Product Material | Copper, Metal |
| Connector Details | 1 x (Ring Terminal) |
| Connector Plating | Tin |
| Product Type | Terminal Connector |
| Product Name | Terminal Connector |
| Product Class | Wire Termination |
| Max Operating Temperature | 105 degrees celsius |
| Barrel Type | Insulation Grip Sleeve |
| Color Coding | Blue |
| Package Quantity | 3000 |
