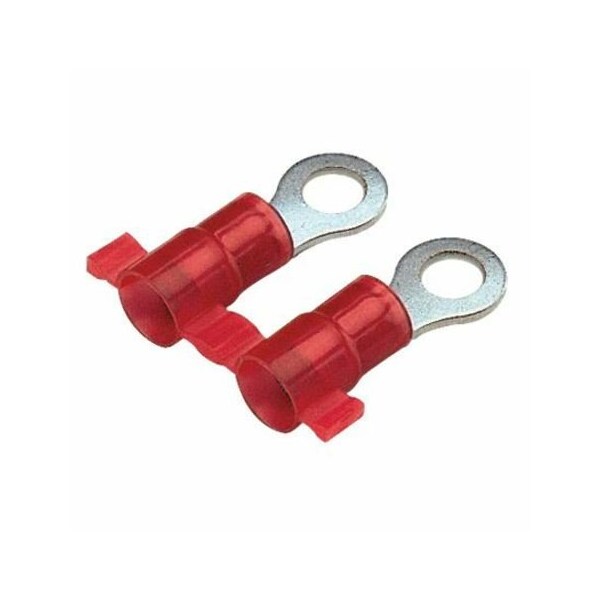

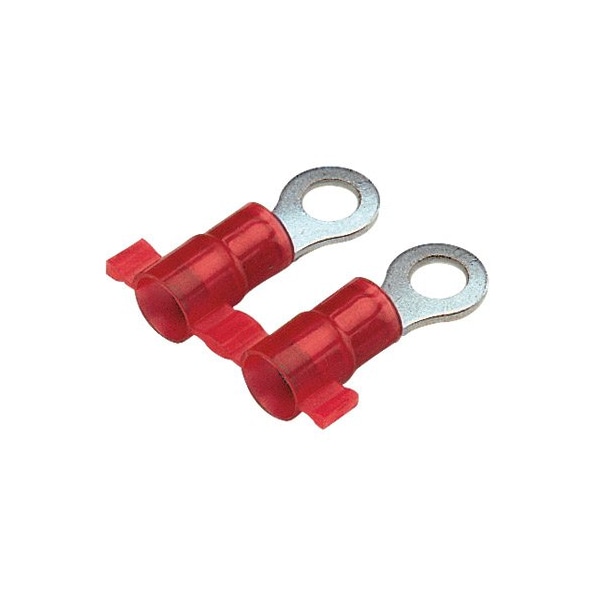

Ring Term, Nyln Insul, 22 - 18 AWG, 1/4" stud, PN18-14R-3K, PK 3000
| Wire Range | 22 to 18 AWG |
|---|---|
| Insulation Type | Nylon |
| Stud Size | 1/4 in |
| Insulation Color | Red |
| Tongue Width - Wire Connector | 0.45 in |
| Max. Temp. | 221 deg F |
| Features | Flame Retardant, Molded |
| Item | Ring Terminal |
| Seam | Grip Sleeved |
| Overall Length | 1.05 in |
| Connection Material | Copper |
| Standards | UL Listed 587H E52164, CSA Certified LR31212, Military QPL AS7928 (MS25036-150) |
| Terminal Type | Ring Tongue |
| Max. Voltage | 600 V |
| Width | 0.4 in |
| Length | 1.1 in |
| Finish | Tin-Plated |
| Insulation Dia | 0.15 in |
| Product Name | Terminal Connector |
| Insulation Material | Nylon |
| Material Details | Metal - Sleeve |
| Product Material | Copper, Metal |
| Connector Details | 1 x (Ring Terminal) |
| Product Type | Terminal Connector |
| Product Color | Red |
| Connector Plating | Tin |
| Max Operating Temperature | 105 degrees celsius |
| Color Coding | Red |
| Barrel Type | Insulation Grip Sleeve |
| Product Class | Wire Termination |
| Package Quantity | 3000 |
