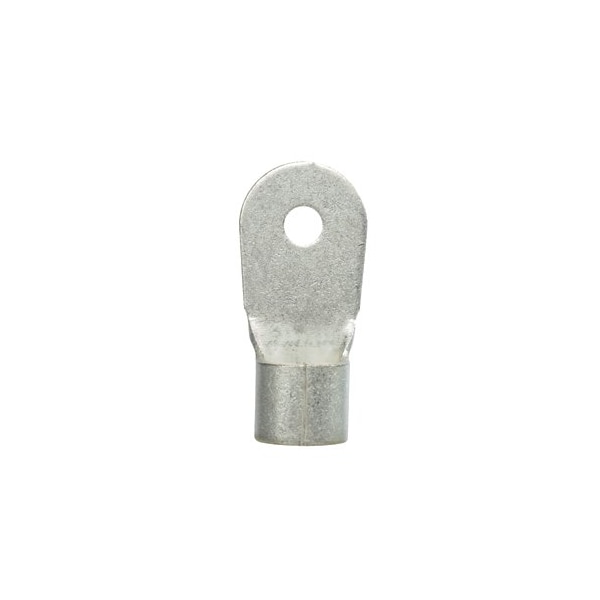

Terminal de anillo, alta temperatura, no aislado, calibre 2, P2-56RHT6-X, paquete con 10 unidades.
| Wire Range | 2 AWG |
|---|---|
| Insulation Type | Non-Insulated |
| Stud Size | 5/16 in |
| Features | Brazed Seam |
| Terminal Type | Ring Tongue |
| Barrel Inside Dia. | 0.37 in |
| Item | Ring Terminal |
| Overall Length | 1.46 in |
| Standards | cULus Listed 587H E52164 |
| Max. Temp. | 650 deg F |
| Connection Material | Copper |
| Tongue Width - Wire Connector | 0.68 in |
| Max. Voltage | 2,000 V |
| Seam | Standard, Brazed |
| Width | 0.7 in |
| Length | 1-1/2 in |
| Finish | Nickel-Plated |
| Product Type | Terminal Connector |
| Connector Plating | Nickel |
| Product Name | Terminal Connector |
| Connector Details | 1 x (Ring Terminal) |
| Product Material | Copper |
| Product Class | Wire Termination |
| Color Coding | Metallic |
| Outside Diameter Inches | 0.48 in |
| Max Operating Temperature | 343 degrees celsius |
| Package Quantity | 10 |
