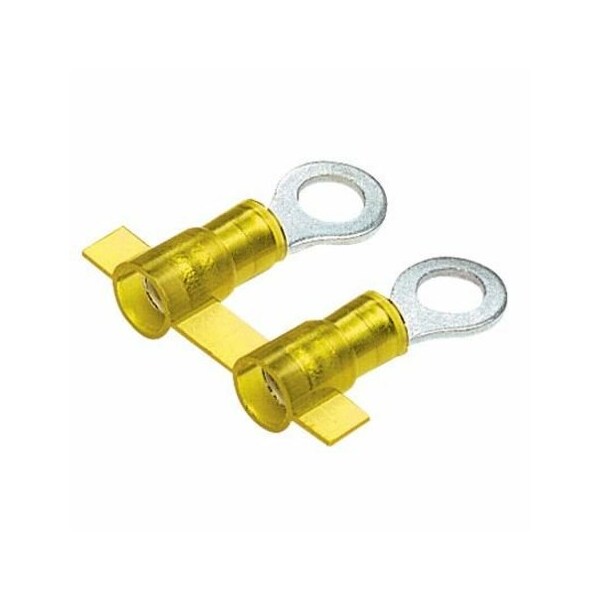

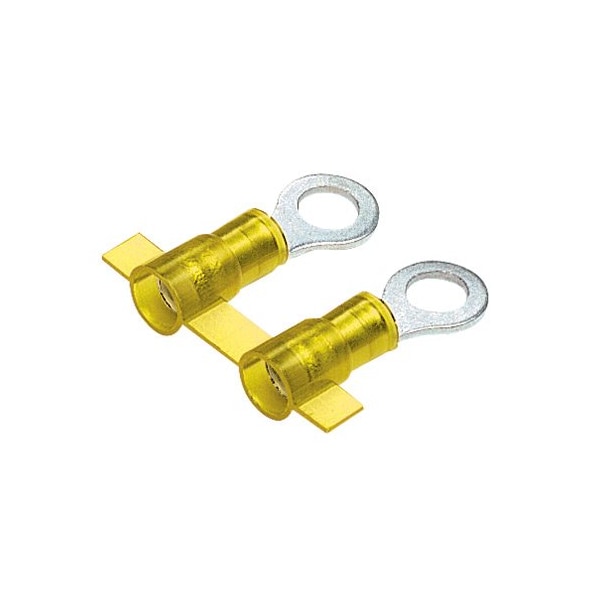

Terminal en anillo, aislado de nylon, calibre 12 - 10 AWG, PNF10-10R-2K, paquete de 2000.
| Wire Range | 12 to 10 AWG |
|---|---|
| Insulation Type | Nylon |
| Stud Size | #10 |
| Insulation Color | Yellow |
| Max. Voltage | 600 V |
| Connection Material | Copper |
| Terminal Type | Ring Tongue |
| Standards | cULus Listed 587H E52164, CSA Certified LR31212, Military QPL AS7928 (MS25036-112) |
| Features | Flame Retardant, Molded |
| Overall Length | 1.06 in |
| Tongue Width - Wire Connector | 0.38 in |
| Seam | Funnel |
| Item | Ring Terminal |
| Max. Temp. | 221 deg F |
| Width | 0.4 in |
| Finish | Tin-Plated |
| Length | 1.1 in |
| Insulation Dia | 0.23 in |
| Connector Plating | Tin |
| Product Name | Terminal Connector |
| Connector Details | 1 x (Ring Terminal) |
| Product Type | Terminal Connector |
| Insulation Material | Nylon |
| Material Details | Metal - Sleeve |
| Product Color | Yellow |
| Product Material | Copper, Metal |
| Product Class | Ring Terminals |
| Barrel Type | Insulation Grip Sleeve |
| Color Coding | Yellow |
| Package Quantity | 2000 |
