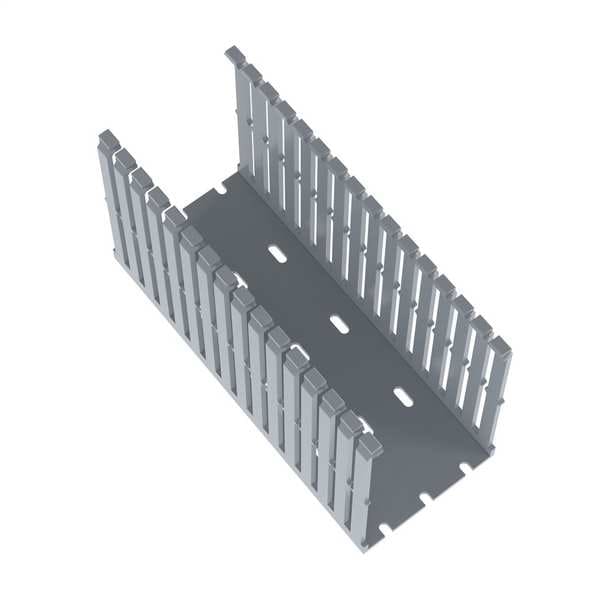

Wire Duct, Narrow Slot, Gray, 3.25 W x 5 D
| Item | Wiring Duct |
|---|---|
| Wall Type | Slotted |
| Mounting Style | Screw Mount |
| Color | Gray |
| Material | Lead-Free PVC |
| Length | 72 in |
| Width | 3-1/4 in |
| Height | 5-1/8 in |
| Slot Height | 4.1 in |
| Slot Width | 0.2 in |
| Slot-to-Slot Centerline | 1/2 in |
| Standards | CE Compliant, CSA Certified, NFPA 79-2015 Section 13.3.1, RU Certified, UL 94V-0 |
| Length (Straight Wireway) | 6 ft |
| Compatible Cover Style | Snap-On |
| Nominal Width | 3 in |
| Nominal Height | 5 in |
| Includes | Base Only |
| Wiring Duct Style | Narrow Slot Wiring Duct |
| Overall Width (mm) | 82.6 |
| Slot Width (In.) | 0.2 |
| Overall Height (In.) | 5.1 |
| Overall Height (mm) | 129.5 |
| Overall Length (ft.) | 6 |
| Overall Width (In.) | 3-1/4 |
| Measurement System | Imperial |
| Application | Narrow slot/finger design provides more slots to fit the spacing of high-density terminal block applications |
| Slot Width (mm) | 5 |
| Product Type | Base Wiring Duct |
| Flammability Rating | UL94 V-0 |
| Overall Length (m) | 1.8 |
| Cover Part Number | C3LG6 |
| Wiring Duct Type | F |
| Mount Method | Mounting Holes |
| Product Material | Polyvinyl Chloride |
| Product Line | Panduct |
| Product Color | Light Gray |
| Product Name | 6ft Panduct Type F - Narrow Slot Wiring Duct |
| Cable Manager Type | Cable Duct |
| Certifications & Standards | RoHS |
| Additional Information | Mounting Hole Spacing: 1.00 inch |
| Standards Met | RoHS Compliant, UL Recognized, CE Compliant; CSA Approved |
| Sub Brand | Panduct® |
| Package Quantity | 1 |
