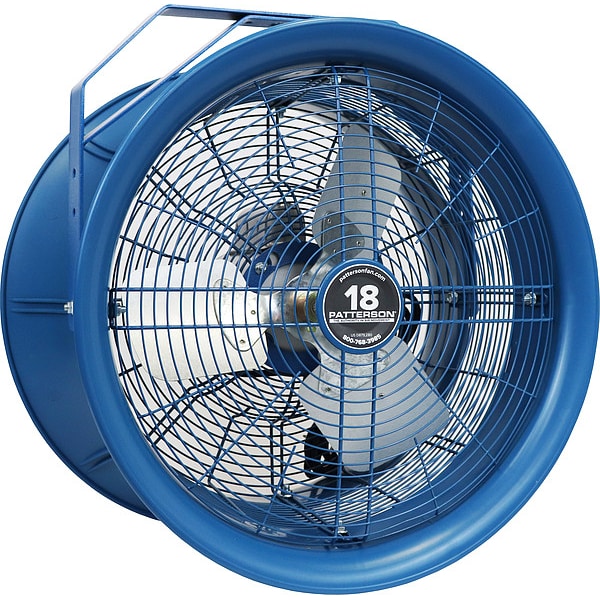

High Velocity Industrial Fan, Ceiling, Column, Floor, Wall Mount, 18 in Blade Dia, 115/208 to 230V
| Blade Diameter | 18 in |
|---|---|
| Oscillation | Non-Oscillating |
| Number of Speeds | 1 |
| Voltage | 115/208 to 230V |
| Phase | 1 |
| Motor HP | 0.5 HP |
| Air Flow | 3,800 cfm |
| Drive Type | Direct Drive |
| Blade Material | Aluminum |
| Fan Power Source | Plug In |
| Sound Level | 65.1 dBA @ 20 ft; 76.3 dBA @ 3 ft |
| Item | High Velocity Industrial Fan |
| Guard Material | Steel |
| Motor Insulation | Class F |
| Motor Enclosure | Totally Enclosed Air Over |
| Max. Depth | 16 in |
| For Use With | Chain Ceiling Mount, Floor Mount, Dock Mount, Column and Wall Mount |
| Standards | OSHA Compliant Guards |
| Height | 25-1/2 in |
| Air Velocity @ 60 Ft. | 250 fpm |
| Fan Mounting Location | Wall, Ceiling, Floor, Column |
| Max. Ambient Temp. | 104 deg F |
| Number of Blades | 3 |
| Width | 24 in |
| Wire Guard Finish | Powder Coated |
| Features | Long Air Throw |
| Color | Blue, Silver |
| Motor RPM | 1,725 RPM |
| Air Velocity @ 20 Ft. | 475 fpm |
| Amps | 6.0/3.0-2.9 A @ 115 /208 to 230 V |
| Includes | Fan Head, OSHA Guards, Power Cord, Yoke Mount |
| Motor Type | Continuous Duty |
| Bearing Type | Ball |
| Thermal Protection | Automatic Reset |
| RPM | 1725 |
| Air Velocity @ 80 Ft. | 175 fpm |
| Air Velocity @ 40 Ft. | 350 fpm |
| Housing Material | Polypropylene |
| Air Velocity @ 10 Ft. | 925 fpm |
| Battery Operated - Fans | No |
| Depth | 16 in |
| Fan Blade Finish | Mill |
| Head Tilt Adjustment | 33 deg |
| Fan Cord Length | 12 ft |
| Fan Housing Material | Polypropylene |
| Max. Mounting Height | Unrestricted |
| Housing Finish - Fans | Matte |
| Fan Blade Color | Silver |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
